Kia Sportage: Charging System / Schematic diagrams

Kia Sportage QL (2015-2020) Service Manual / Engine Electrical System / Charging System / Schematic diagrams

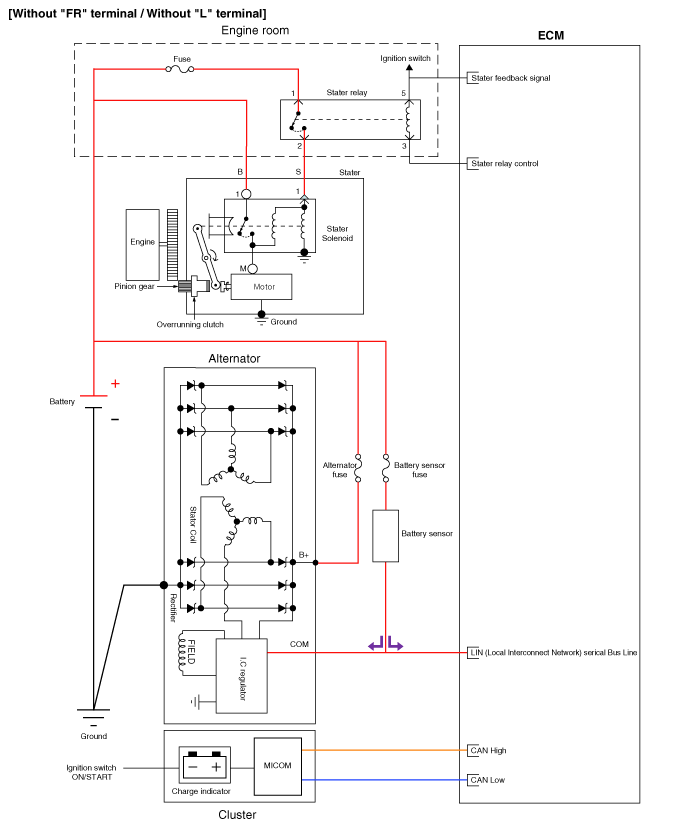

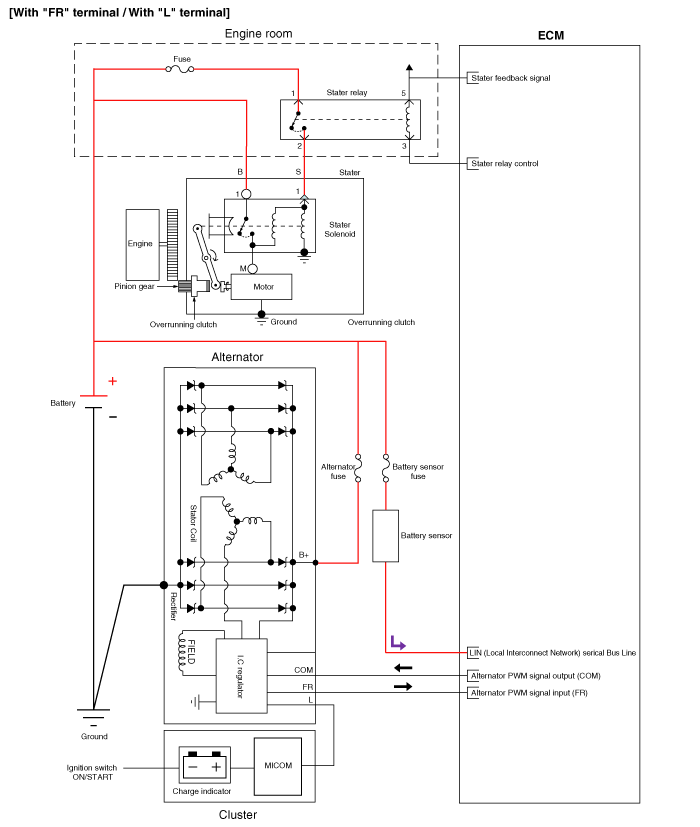

Circuit Diagram

Description and operation
Description The charging system included a battery, an alternator with a built-in regulator, and the charging indicator light and wire. The Alternator has eight built-in diodes ...

Repair procedures
Inspection Inspection Item • Battery efficiency inspection • Battery voltage inspection • ...
