Kia Sportage: Smart Parking Assist System (SPAS) / Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Schematic diagrams

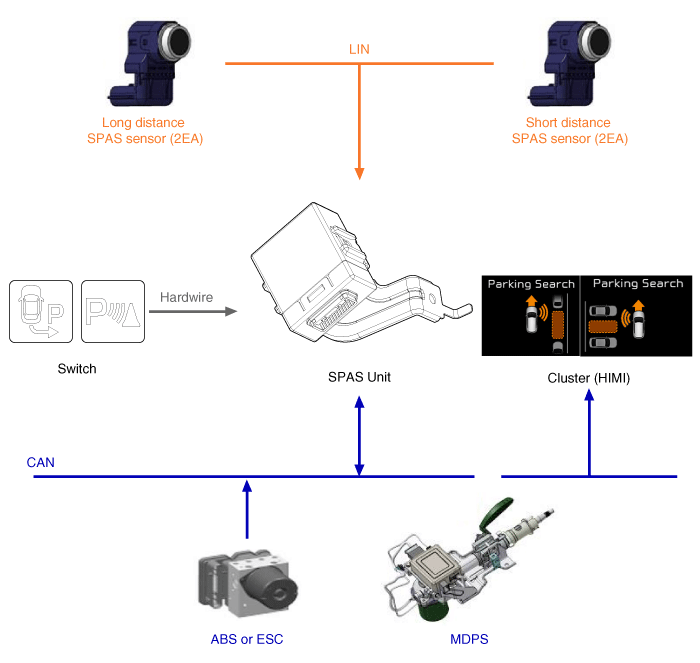

Block Diagram

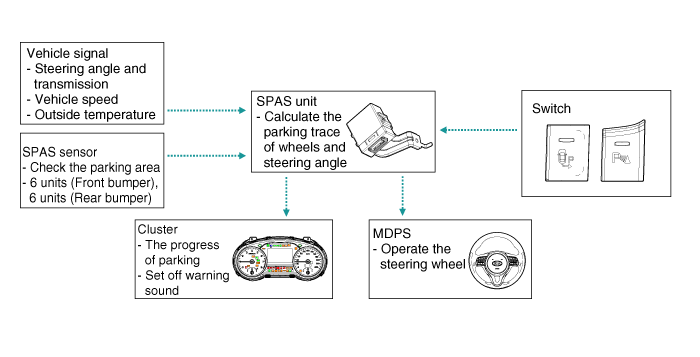

Components and components location
Component Location Item Description SPAS SPAS unit (ECU) • Calculate the parking trace of wheels ...

Description and operation
Description Operation procedure (Perpendicular/parallel parking) 1. Select the parking mode by operating sub system switch (A) in the parking direction while ...
