Kia Sportage: Back View Camera System / Schematic diagrams

Kia Sportage QL (2015-2023) Service Manual / Body Electrical System / Back View Camera System / Schematic diagrams

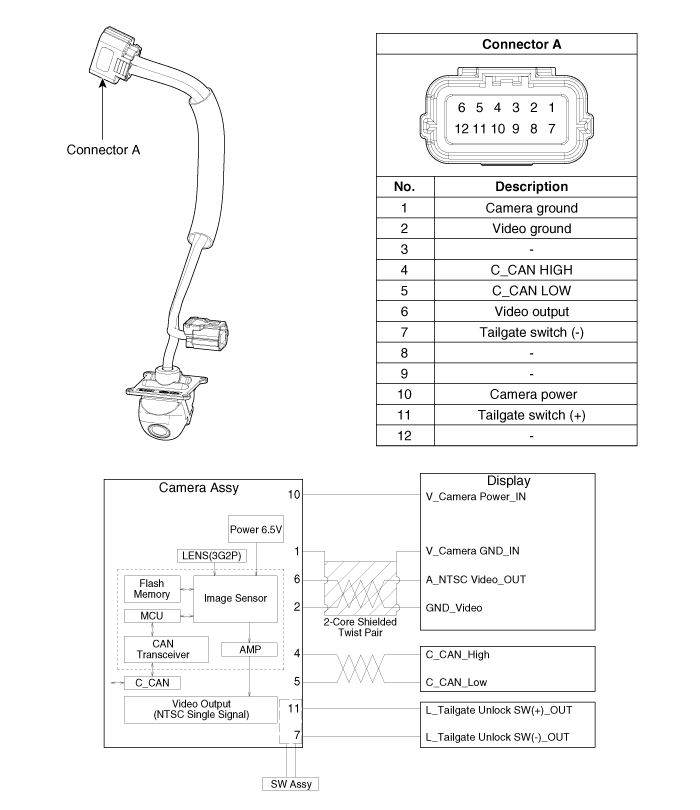

Circuit Diagram

Components and components location
Component Location 1. Back view camera 2. Inside rear view mirror ...

Description and operation
Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system t ...
