Kia Sportage: Quarter Fixed Glass / Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body (Interior and Exterior) / Quarter Fixed Glass / Repair procedures

Replacement
1.
Pull down rear door window glass by pressing the power window glass switch.
2.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
3.
Remove the rear door side weatherstrip.
(Refer to Rear Door - "Rear Door Side Weatherstrip")
4.

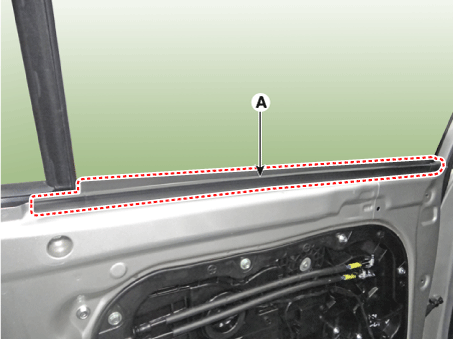

Remove the rear door belt inside weatherstrip (A).

5.

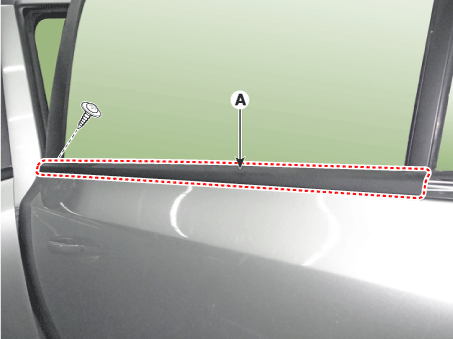

Remove the rear door belt outside weatherstrip (A) after loosening the mounting screws.

6.

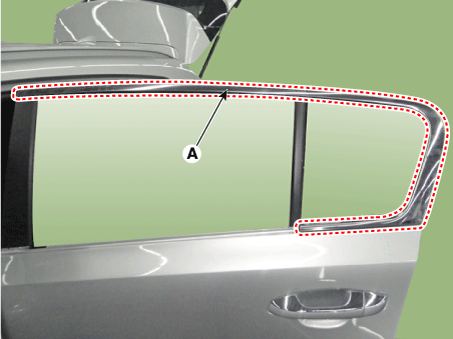

Remove the rear door frame molding (A) after loosening the mounting screws.

7.

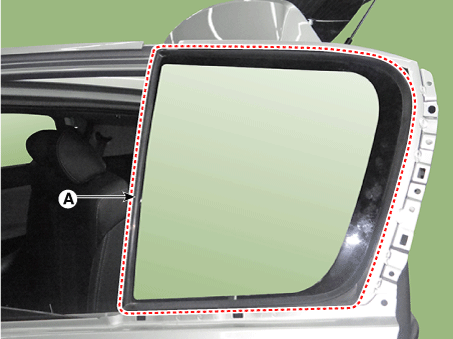

Remove the quarter fixed glass (A).

8.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
Components and components location
Component Location 1. Quarter fixed glass ...
