Kia Sportage: Floor Carpet / Repair procedures

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Floor Carpet / Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the console front complete assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
Remove the accelerator pedal.
(Refer to Engine Control System - "Accelerator Position Sensor (APS)")
3.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
4.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
5.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
6.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
7.
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
8.
Remove the floor carpet assembly (A).
9.
Install in the reverse order of removal.

Replace any damaged clips

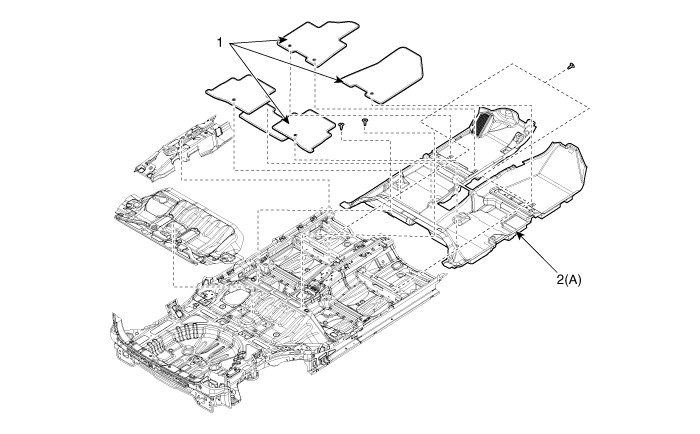

1. Car mat
2. Floor carpet

Floor Carpet
...
