Kia Sportage: Specifications & Consumer information / Recommended lubricants and capacities

Kia Sportage QL (2015-2020) Owners Manual / Specifications & Consumer information / Recommended lubricants and capacities

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.

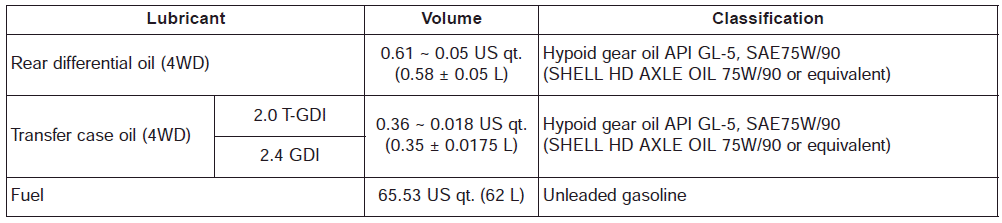

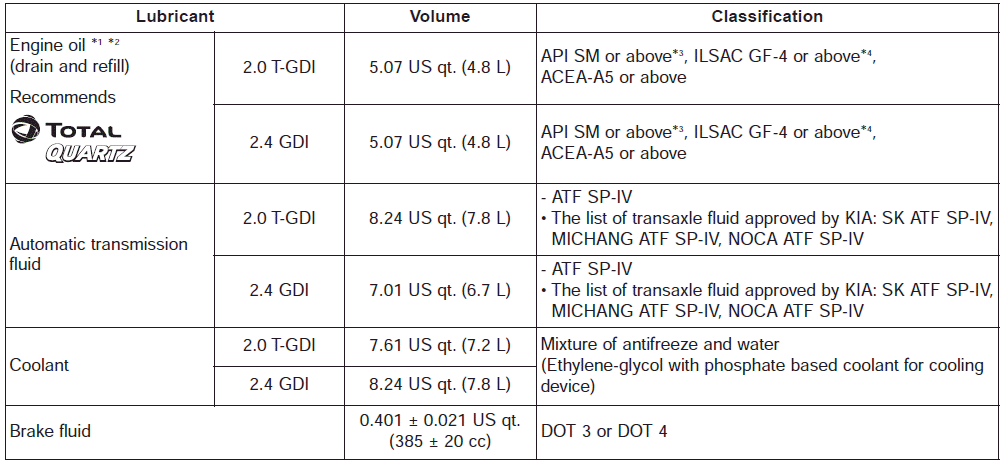

These lubricants and fluids are recommended for use in your vehicle.

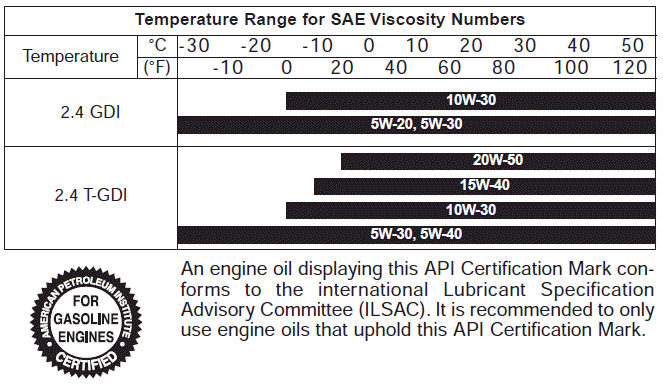

Recommended SAE viscosity number

Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance; however, higher viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than those recommended could result in engine damage. When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil viscosity from the chart.

Gross vehicle weight
...

Vehicle certification label
The vehicle certification label attached on the driver’s side center pillar gives the vehicle identification number (VIN). ...
