Components

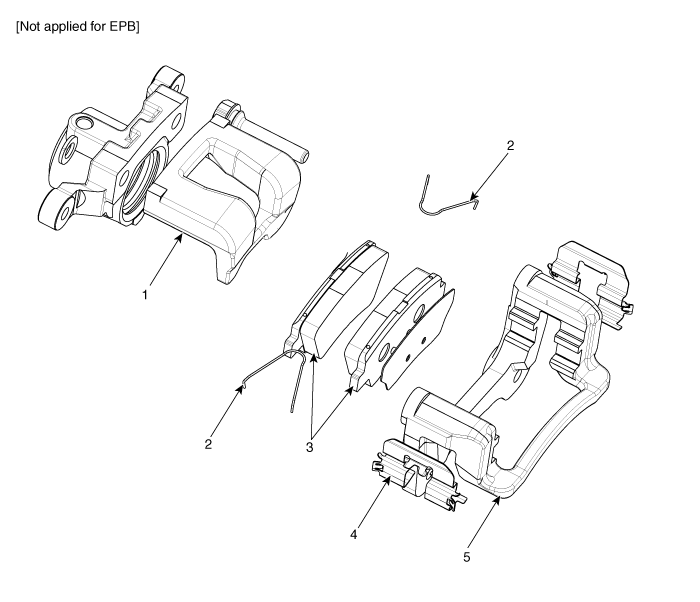

1. Caliper body
2. Pad return spring
3. Brake pad
4. Pad retainer
5. Caliper carrier

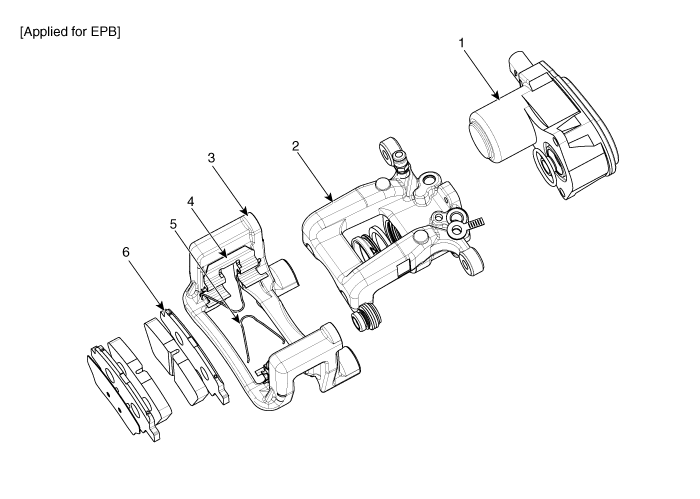

1. EPB motor
2. Caliper body
3. Caliper carrier
4. Pad retainer
5. Pad return spring
6. Brake pad

Front Disc Brake Repair procedures
Removal Brake Pad 1. Remove the front wheel and tire (A) from front hub. Tightening torque : 107.9 - 127.5 N·m (11.0 - 13 ...

Rear Disc Brake Repair procedures
Removal [Not applied for EPB] Brake Pad 1. Remove the rear wheel and tire (A) from front hub. Tightening torque: 107.9 ...
