Kia Sportage: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

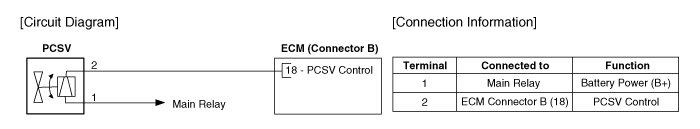

Circuit Diagram

Terminal Information

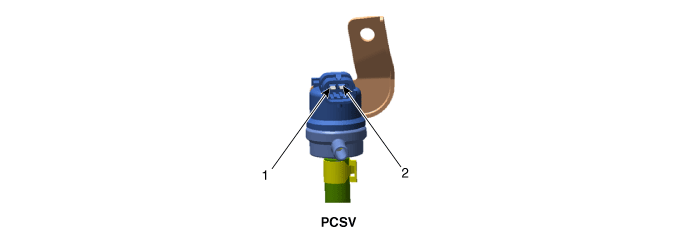

Terminal Illustration

Terminal Function
No.
Function
Connected to
1
Battery power (B+)
Main Relay
2
Purge Control Solenoid Valve (PCSV) control
ECM Connector B (18)

Purge Control Solenoid Valve (PCSV) Description and operation
Description Purge Control Solenoid Valve (PCSV) is installed on the surge tank and controls the passage between the canister and the intake manifold. It is a solenoid valve and i ...

Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance betwe ...
