Kia Sportage: Evaporative Emission Control System / Purge Control Solenoid Valve (PCSV) Repair procedures

Kia Sportage QL (2015-2022) Service Manual / Emission Control System / Evaporative Emission Control System / Purge Control Solenoid Valve (PCSV) Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the PCSV connector.
3.
Measure resistance between the PCSV terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification: 22.0 - 26.0 Ω [20°C(68°F)]
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Disconnect the purge control solenoid valve connector and vapor hoses.
3.

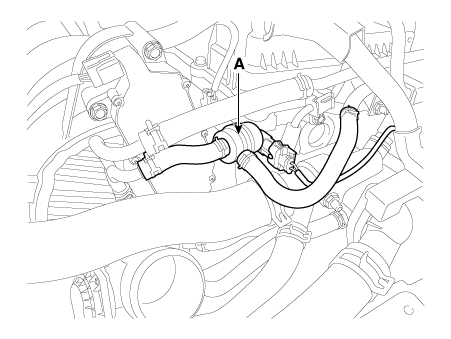

Remove the purge control solenoid valve (A).

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Use care to keep foreign material out of the valve.
1.
Install in the reverse order of removal.
Purge Control Solenoid Valve (PCSV) Schematic diagrams
