Kia Sportage: Power Windows / Power Window Switch Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic diagrams

Circuit Diagram

Driver Power Window Switch

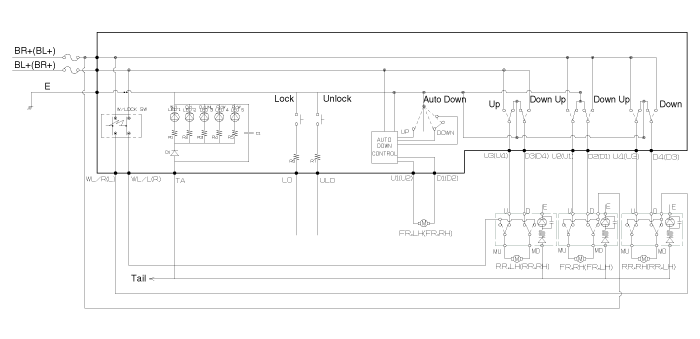

[Driver power window switch (Safety)]

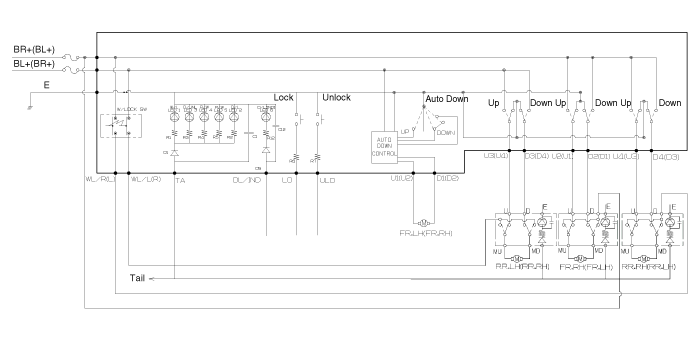

[Driver Power Window Switch (Safety) + Door Lock Indicator]

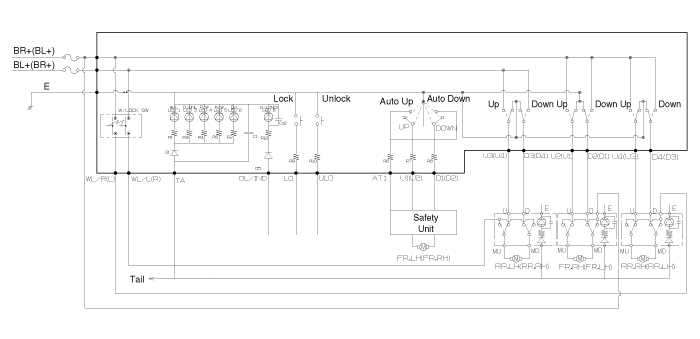

[Power Window Switch (Auto Down)]

[Power Window Switch (Auto Down) + Door Lock Indicator]

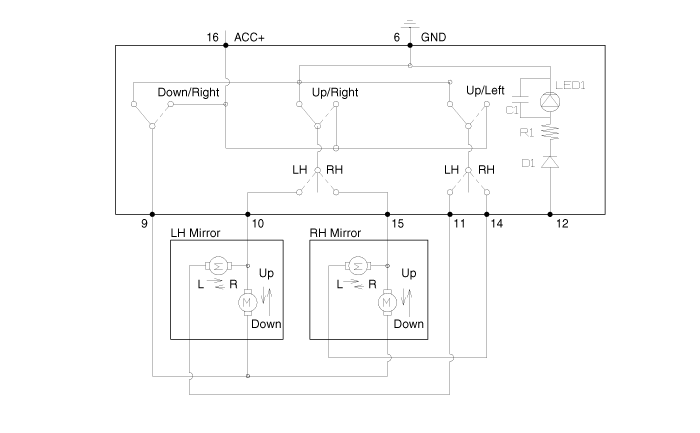

[Mirror Non Folding Type]

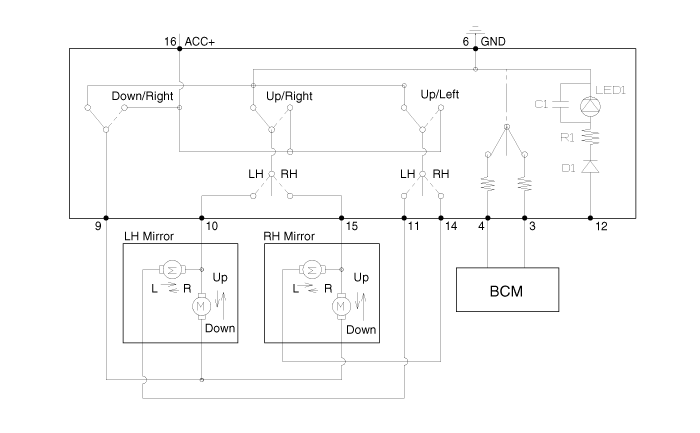

[Mirror Folding Type]

Assist Power Window Switch

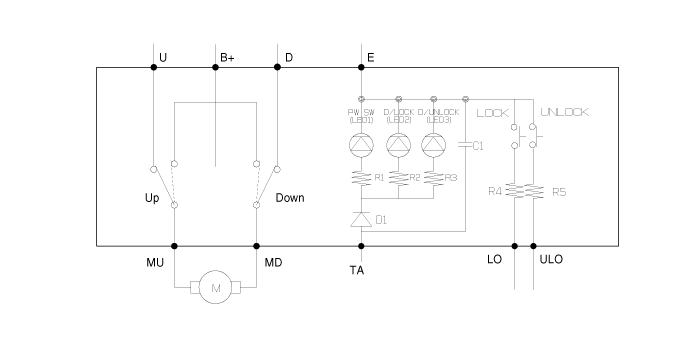

[Assist Power Window Switch (Manual + Door Lock Switch)]

[Assist Power Window Switch (Manual + Door Lock Switch + Door Lock Indicator)]

Rear Power Window Switch

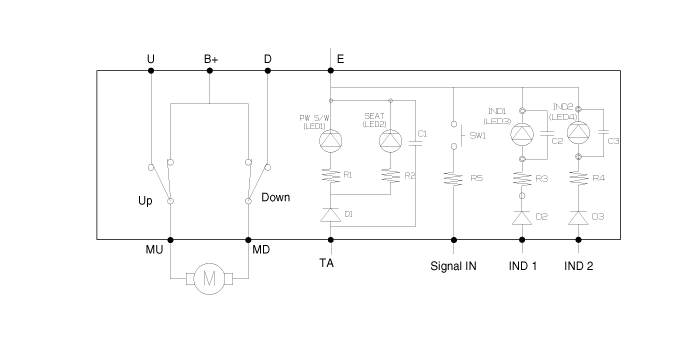

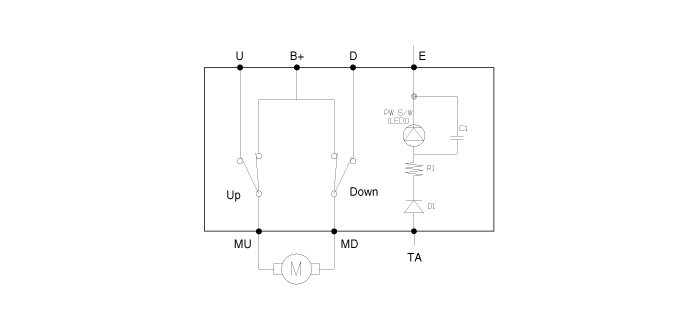

[Rear Power Window Switch (Manual + Seat Non Heater)]

[Rear Power Window Switch (Manual + Seat Heater)]
