Kia Sportage: Liftgate (for manual liftgate) / Opening the liftgate
.png)
- The liftgate is locked or unlocked when all doors are locked or unlocked
with the key, transmitter (or smart key) or central door lock switch.

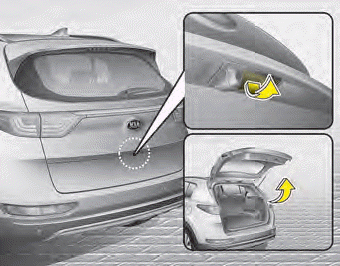

- If unlocked, the liftgate can be opened by pressing the handle switch
and then pulling the handle up.
- Only the liftgate is unlocked if the liftgate unlock button on the smart
key is pressed (if equipped). Once the liftgate is opened and then closed, the
liftgate is locked automatically.
The liftgate swings upward. Make sure no objects or people are near the rear
of the vehicle when opening the liftgate.
✽ NOTICE
In cold and wet climates, door lock and door mechanisms may not work properly
due to freezing conditions.
CAUTION - Liftgate lift
Make certain that you close the liftgate before driving your vehicle. Possible
damage may occur to the liftgate lift cylinders and attached hardware if the liftgate
is not closed prior to driving.
To close the liftgate, lower and push down the liftgate firmly. Make sure that
the liftgate is securely latched.
Make sure your hands, feet and other parts of your body are safely out of the
wa ...
