Description

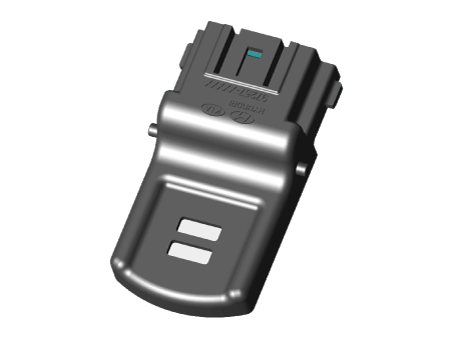

Installed on the windshield glass, the auto defogging sensor judges and sends signal to blow out wind for defogging if moisture occurs. On receiving the signal from the sensor, the air conditioner control module restrains moisture and eliminates fog by controlling the intake actuator, A/C, auto defogging actuator, blower motor rpm, and mode actuator.
