Kia Sportage: AVN System / Multimedia Jack Repair procedures
Multimedia Jack
Put on gloves to protect your hands.
|
• |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
• |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
• |
Take care not to bend or scratch the trim and panels.
|
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |

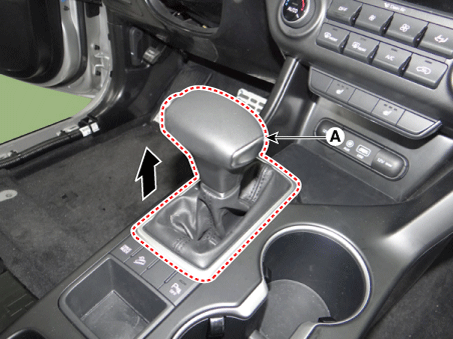

Remove the gear knob & boots (A) pull both of it up.
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6535d.gif)
|
3. |

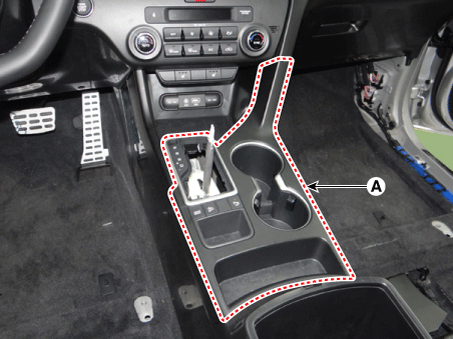

Remove the console upper cover (A) by using a remover.
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6536d.gif)
|
4. |

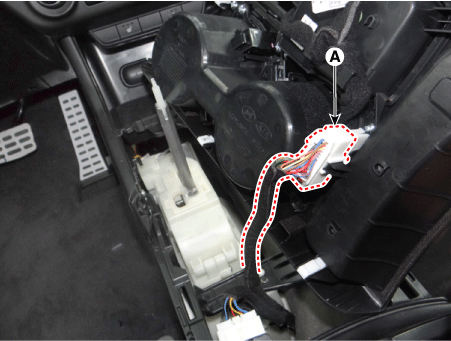

Disconnect the console upper cover connectors (A).
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6537d.gif)
|
5. |

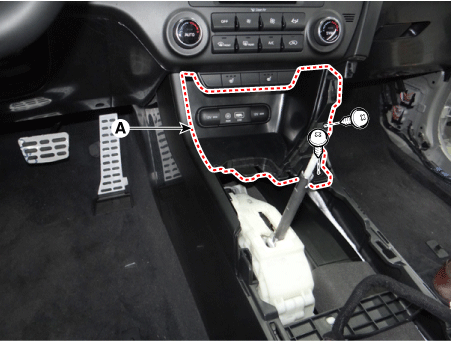

Remove the console front tray (A) after loosening the mounting screws.
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6538d.gif)
|
6. |

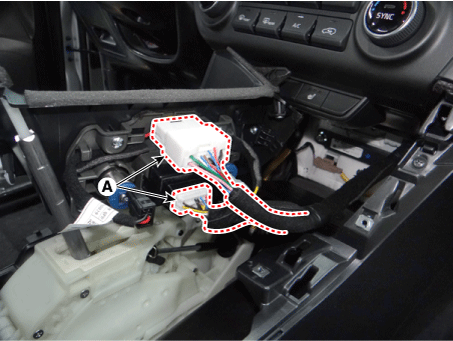

Disconnect the console front tray connectors (A).
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6539d.gif)
|
7. |

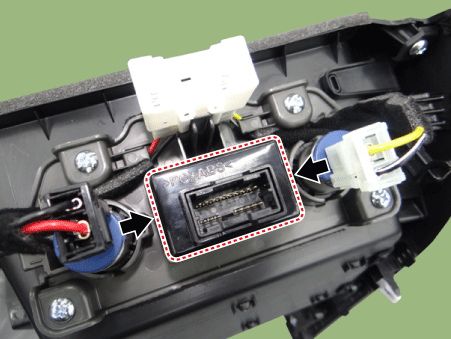

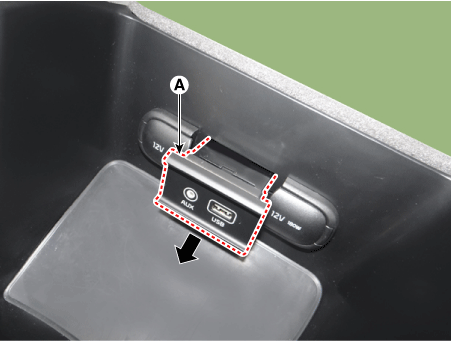

Remove the multimedia jack (A) after releasing the fixed hooks.
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6540d.gif)
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6541d.gif)
|
USB Charger (Rear Console Cover)
Put on gloves to protect your hands.
|
• |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
• |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
• |
Take care not to bend or scratch the trim and panels.
|
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the floor console assembly.
(Refer to Body - "Floor Console Assembly")
|
3. |
Disconnect the USB charger connector (A).
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6542d.gif)
|
4. |

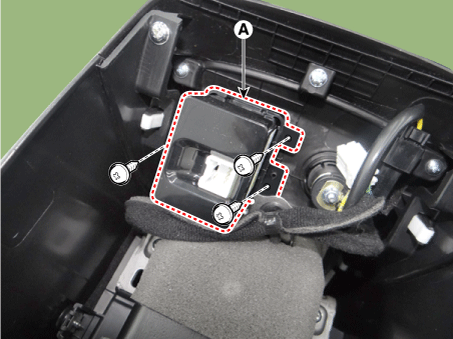

Remove the USB charger (A) after loosening the mounting screws.
![](images/multimedia_jack_repair_procedures-1454/601/sqlbe6543d.gif)
|
Multimedia Jack
1. |
Install the multimedia jack.
|
2. |
Connect the console front tray connectors.
|
3. |
Install the console front tray.
|
4. |
Connect the console upper cover connectors.
|
5. |
Install the console upper cover.
|
6. |
Install the gear knob & boots.
|
7. |
Connect the negative (-) battery terminal.
•
|
Make sure the multimedia connector and the console front
tray connectors are plugged in properly.
|
•
|
Check the AVN system for normal operation.
|
|
|
USB Charger (Rear Console Cover)
1. |
Install the USB charger.
|
2. |
Connect the USB charger connector.
|
3. |
Install the floor console assembly.
|
4. |
Connect the negative (-) battery terminal.
Make sure that the cables and connectors are plugged in properly.
|
|
