Replacement
1.
Remove the movable glass.
(Refer to Panorama sunroof - "Movable Glass")
2.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
3.
Remove the roller blind.
(Refer to Panorama sunroof - "Roller Blind")
4.

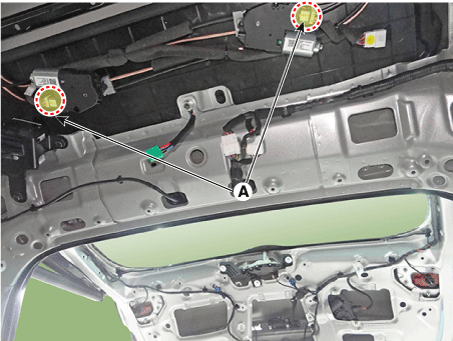

Disconnect the panorama sunroof connector and roller blind motor connectors (A).

5.

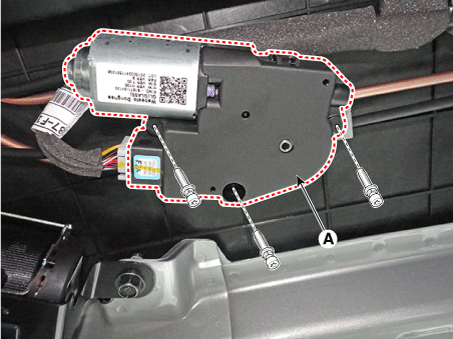

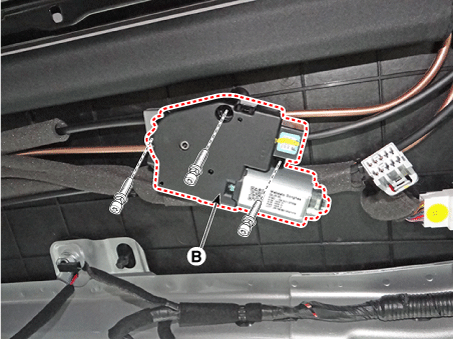

Remove the movable glass motor (A) and roller blind motor (B) after loosening the screw.

6.

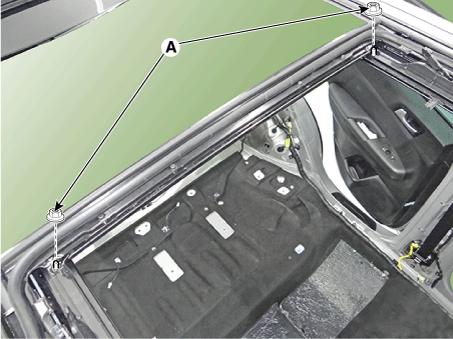

Loosen the mechanism upper mounting nuts (A).

7.

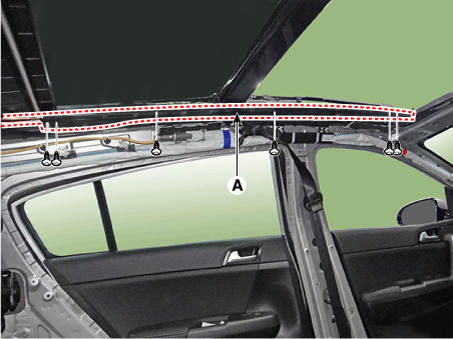

Remove the mechanism rail after loosening the lower mounting screw.

8.
Install in the reverse order of removal.

Resetting the Panorama Sunroof.
(Refer to Body Electrical System - "Panorama Sunroof Motor")
Mechanism Rail Components and components location

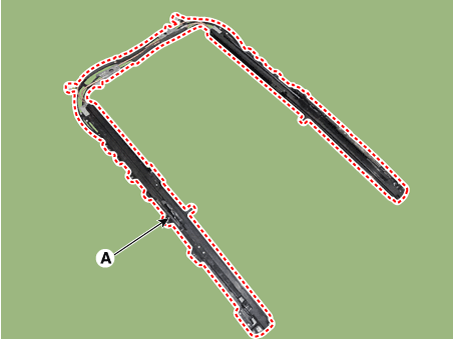

Component Location 1. Mechanism rail ...

Panorama Sunroof Assembly Components and components location
Components Location 1. Panorama sunroof assembly ...
