| Description |

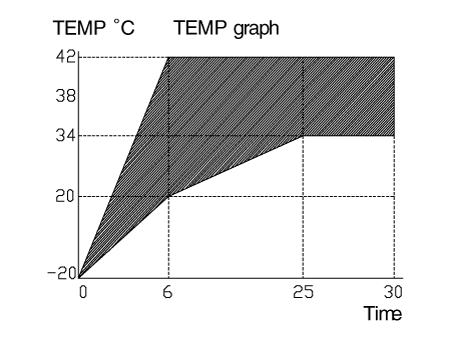

The heated steering wheel system improves the thermal comfort of the driver
by heating the steering wheel when manually selected.

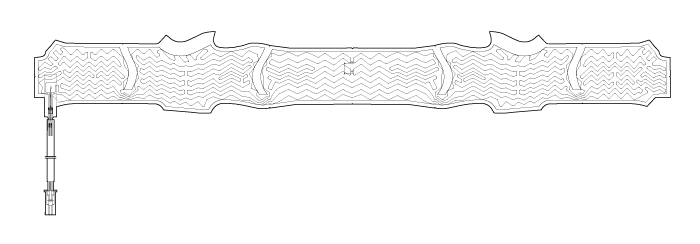

Heated pad
Specifications
|
Item |
Specification |
|
Voltage |
13.5 V ± 0.1V, 80W±10% |
|
Heated pad resistance |
1.60 - 2.00 Ω |
|
NTC resistance |
10.0 kΩ ± 10% (22°C ±1°C) |
Repair procedures
Removal
1.
Disconnect the battery negative cable from the battery and then wait
for at least 30 seconds.
2.
Turn the steering wheel ...
Heated Steering Wheel Schematic diagrams
System Circuit Diagram
Terminal Function
Housing
Pin
Function
Wire color
Pad
A
GND
...
