Kia Sportage: Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic diagrams

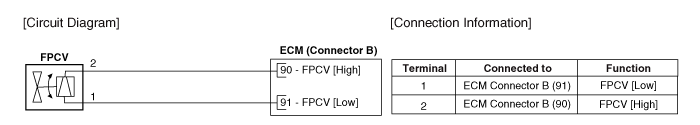

Circuit Diagram

Terminal Information

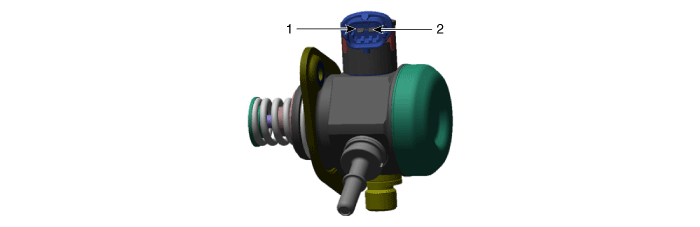

Terminal Illustration

Terminal Function

No.	Function	Connected to
1	Fuel Pressure Control Valve (FPCV) [Low] control	ECM Connector B (91)
2	Fuel Pressure Control Valve (FPCV) [High] control	ECM Connector B (90)

Fuel Pressure Control Valve (FPCV) Description and operation

Description Fuel Pressure Control Valve is installed on the high pressure fuel pump and controls fuel flow flowing into the injectors in accordance with the ECM signal calculated ...

Fuel Pressure Control Valve (FPCV) Repair procedures

Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator ...
