Kia Sportage: Lighting / Front fog light
Fog lights are used to provide improved visibility when visibility is poor due

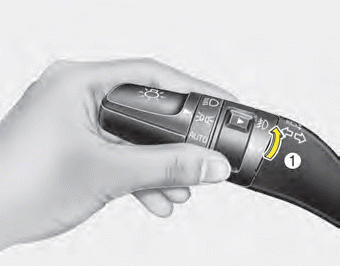

to fog, rain or snow, etc. The fog lights will turn on when the fog light switch
(1) is turned to the on position after the headlight is turned on.
To turn off the fog lights, turn the fog light switch (1) to the OFF position.
When in operation, the fog lights consume large amounts of vehicle electrical
power. Only use the fog lights when visibility is poor.
