Kia Sportage: Engine Control System / ETC (Electronic Throttle Control) System Specifications
Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System Specifications
| Specification |

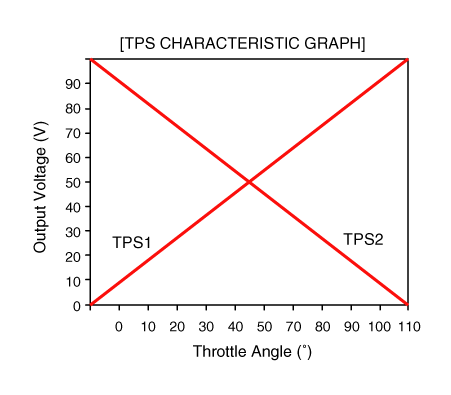

[Throttle Position Sensor (TPS)]
|
Throttle Angle(°) |
Output Voltage (V) [Vref = 5V] |
|
|
TPS1 |
TPS2 |
|
|
0 |
0.0 |
5.0 |
|
10 |
0.48 |
4.52 |
|
20 |
0.95 |
4.05 |
|
30 |
1.43 |
3.57 |
|
40 |
1.90 |
3.10 |
|
50 |
2.38 |
2.62 |
|
60 |
2.86 |
2.14 |
|
70 |
3.33 |
1.67 |
|
80 |
3.81 |
1.19 |
|
90 |
4.29 |
0.71 |
|
100 |
4.76 |
0.24 |
|
105 |
5.0 |
0 |
|
C.T (6 - 15°) |
0.29 - 0.71 |
4.29 - 4.71 |
|
W.O.T (93 - 102°) |
4.43 - 4.86 |
0.14 - 0.57 |
[ETC Motor]
|
Item |
Specification |
|
Coil Resistance (Ω) |
0.3 - 100 [20°C(68°F)] |
Engine Control Module (ECM) Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Remove the air cleaner and intake hose.
...
ETC (Electronic Throttle Control) System Description and operation
Description
The Electronic Throttle Control (ETC) System consists of a throttle body with
an integrated control motor and throttle position sensor (TPS). Instead of the
tradition ...
