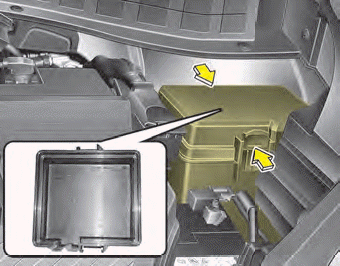

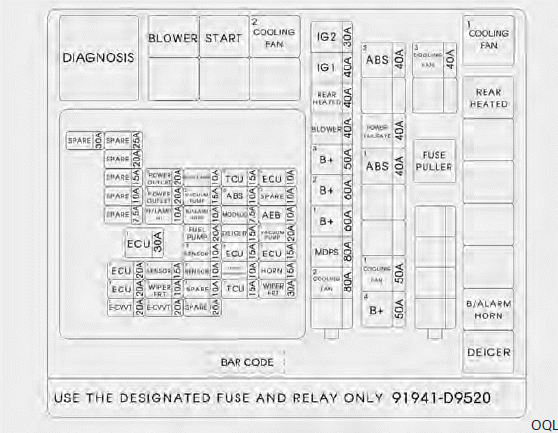

Kia Sportage: Fuse/relay panel description / Engine compartment fuse panel
![](images/engine_compartment_fuse_panel-536/1/page.h25(4).png)
![](images/engine_compartment_fuse_panel-536/1/page.h26(4).png)

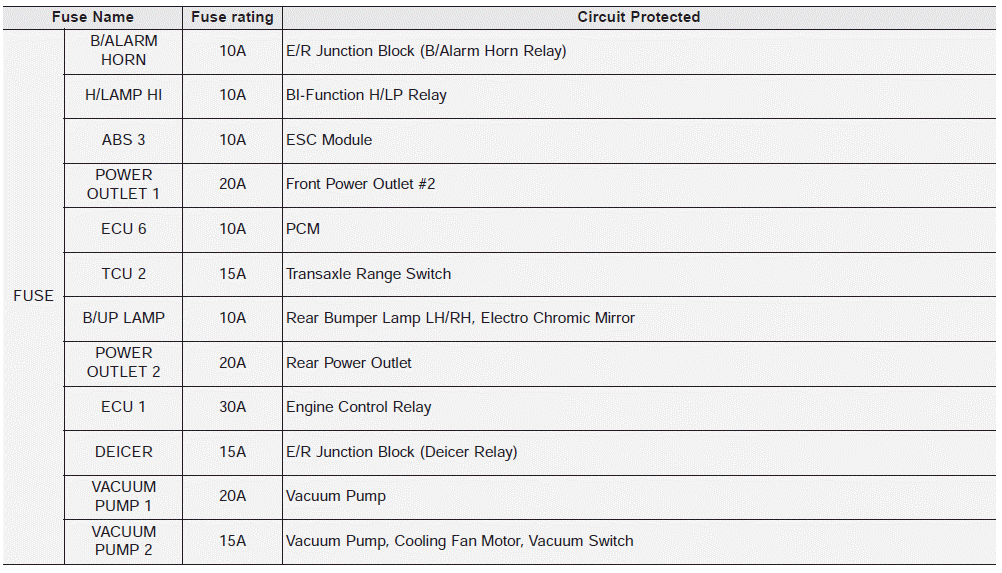

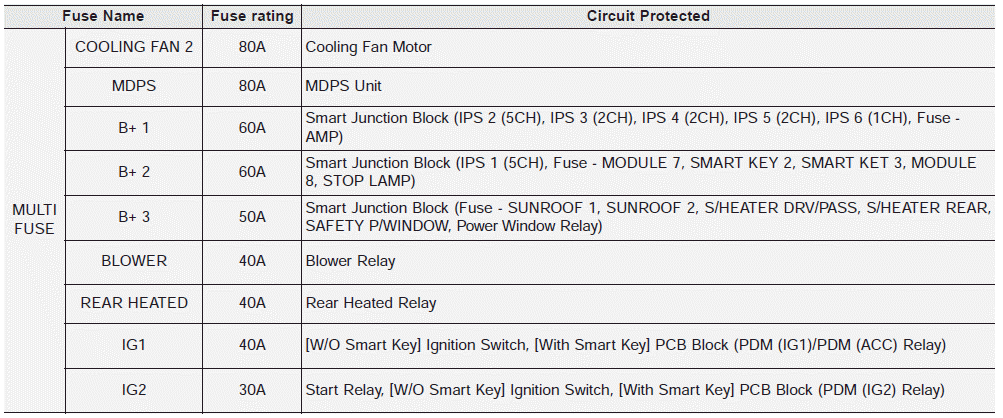

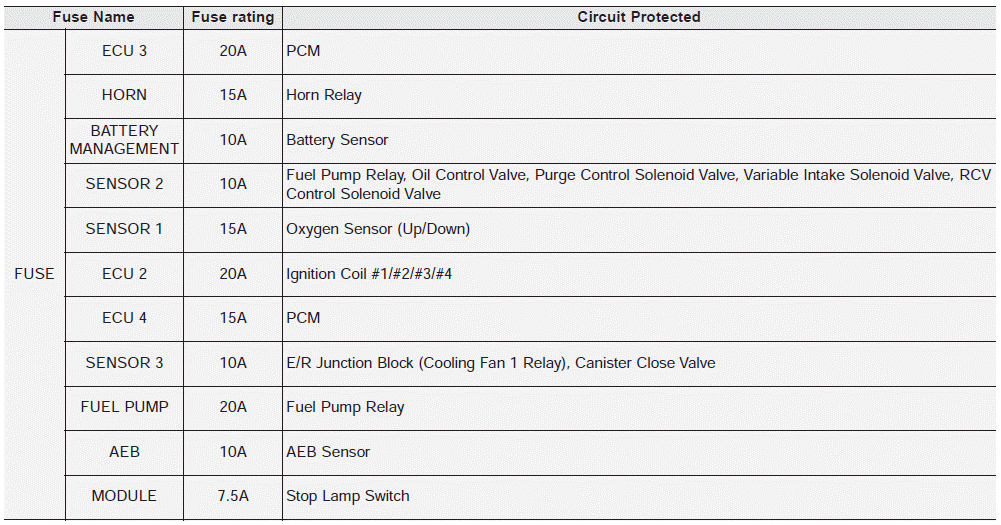

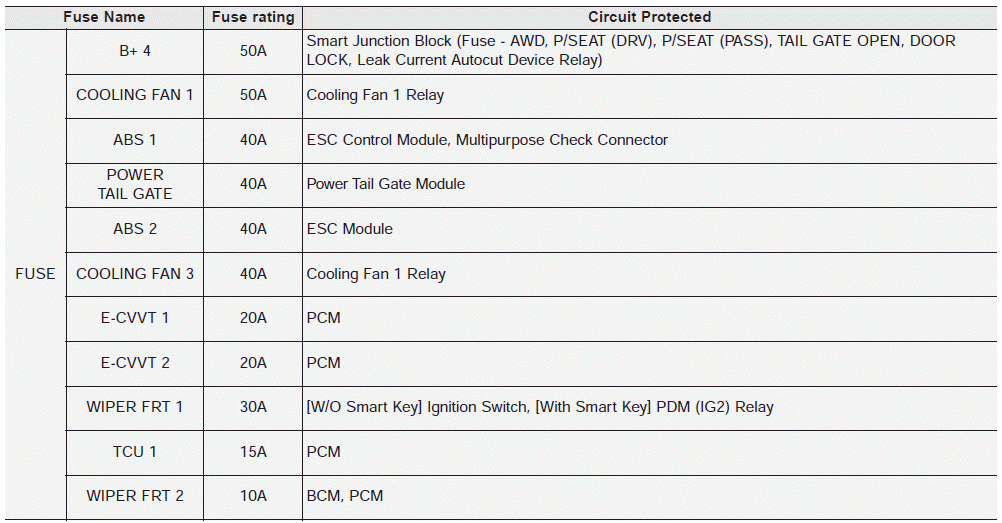

Engine room compartment fuse panel
![](images/engine_compartment_fuse_panel-536/1/page.h27(5).png)
![](images/engine_compartment_fuse_panel-536/1/page.h28(5).png)
![](images/engine_compartment_fuse_panel-536/1/page.h29(5).png)
![](images/engine_compartment_fuse_panel-536/1/page.h30(5).png)

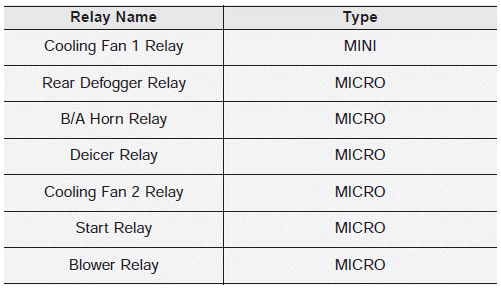

Relay
![](images/engine_compartment_fuse_panel-536/1/page.h31(5).png)
Inside the fuse/relay panel covers, you can find the fuse/relay label describing
fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your ...
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle.
It is accurate at the time of printing. When you inspect the fuse panel in your
vehicle, refer to th ...
