Kia Sportage: Engine Control System / E-CVVT motor Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Engine Control / Fuel System / Engine Control System / E-CVVT motor Schematic diagrams

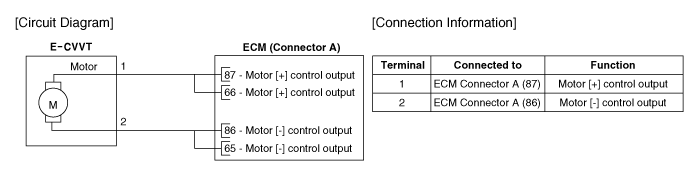

Circuit Diagram

E-CVVT motor Description and operation
Description Electric E-CVVT system is electric continuous variable valve timing system. It is located on the intake camshaft of the engine and uses motor rotation to control the ...

E-CVVT motor Repair procedures
Removal 1. Remove the electric E-CVVT. (Refer to engine machine system - "CVVT assembly") Installation 1. ...
