Kia Sportage: Smart key function / Door Lock

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Smart key / Smart key function / Door Lock

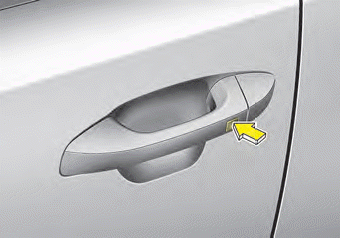

Using the door handle button

- Carry the smart key.
- Close all doors, engine hood and liftgate.
- Press the button of the outside door handle.
- The hazard warning lights will blink and the chime will sound once.
- Make sure that doors are locked by pulling the outside door handle.

✽ NOTICE

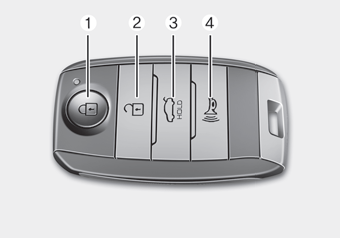

Using the button on the smart key

- Close all doors, engine hood and liftgate.
- Press the lock button(1).
- The hazard warning lights will blink and the chime will sound once.
- Make sure that doors are locked by pulling the outside door handle.

Smart key function
To remove the mechanical key, press and hold the release button (1) and remove the mechanical key (2). To reinstall the mechanical key, put the key into the hole and push it until a click sound ...

Unlocking
Using the door handle button 1. Carry the smart key. 2. Press the button of the driver's outside door handle. 3. The driver’s door will unlock. The hazard warning lights will blink and the ...
