Kia Sportage: ESP(Electronic Stability Program) System / DBC Switch Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Brake System / ESP(Electronic Stability Program) System / DBC Switch Repair procedures

Inspection

1.	Turn ignition switch OFF and disconnect the negative (-) battery terminal.

2.	Remove the console upper cover. (Refer to Body - "Floor Console")

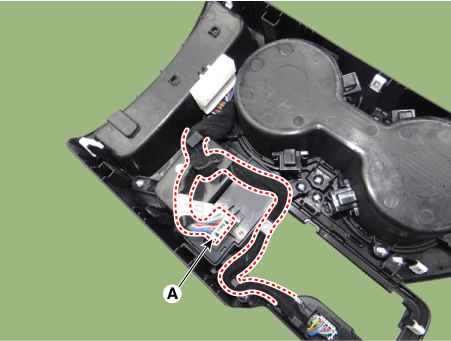

3.	Disconnect the connector(A).

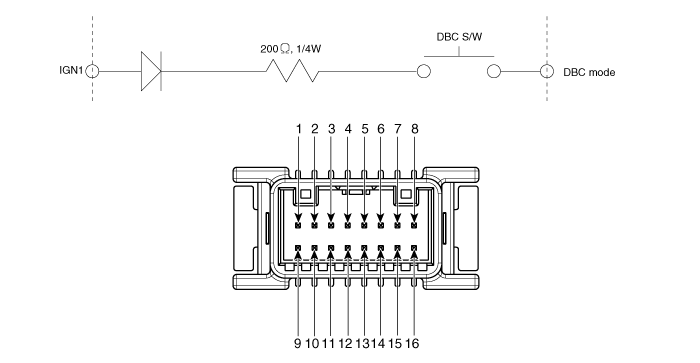

4.	Check the continuity between the switch terminals as the DBC switch is engaged.
