Kia Sportage: Crash Pad / Crash Pad Garnish [RH] Repair procedures

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Garnish [RH] Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

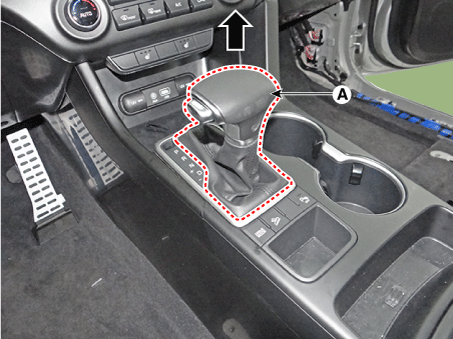

To remove the gear knob & gear boots (A) pull both of it up.

2.

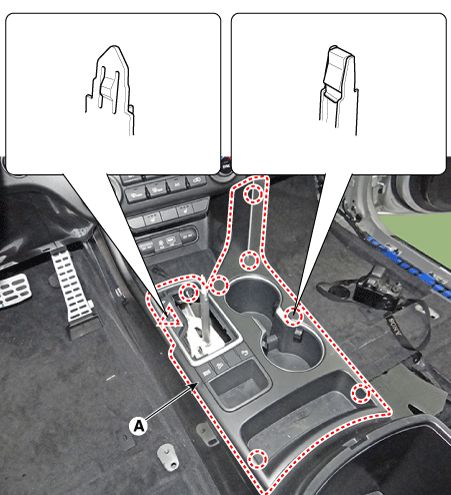

Using a remover, remove the floor console upper cover (A).

3.

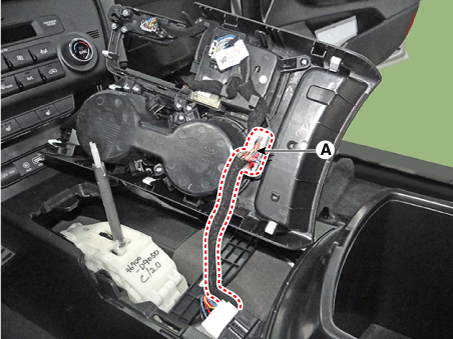

Disconnect the connectors (A) from the floor console upper cover.

4.

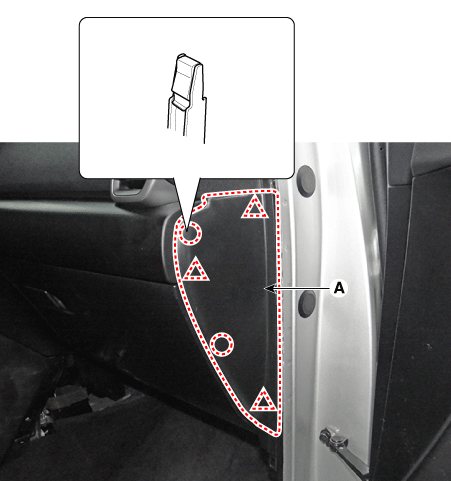

Using a remover, remove the crash pad side cover [RH] (A).

5.

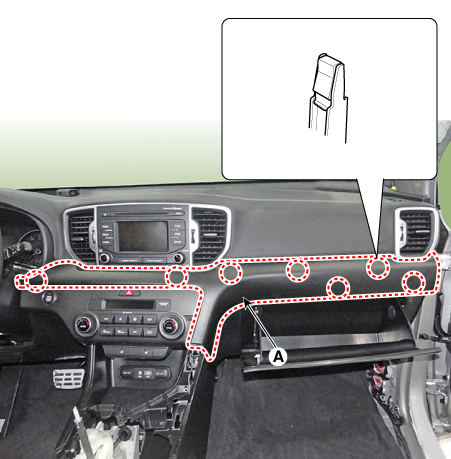

Using a remover, remove the crashi pad garnish [RH] (A).

6.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
