Kia Sportage: Engine Control System / Crankshaft Position Sensor (CKPS) Schematic diagrams

Kia Sportage QL (2015-2022) Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Schematic diagrams

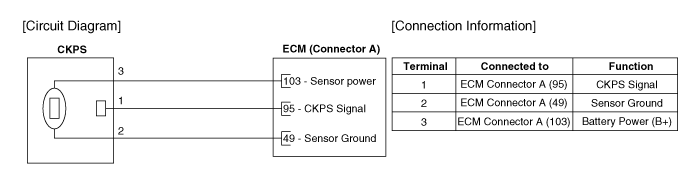

Circuit Diagram

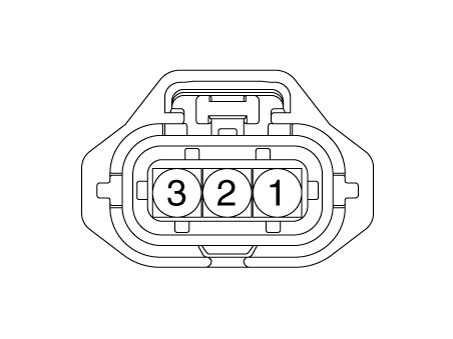

Harness Connector

Crankshaft Position Sensor (CKPS) Description and operation
Description Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one of the most important sensors of the engine control system. If there is no CKPS signal in ...

Crankshaft Position Sensor (CKPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the KDS/GDS. Specification: Refer to “Wave Form” ...
