Kia Sportage: Wireless Power Charger System / Components and positions

Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Wireless Power Charger System / Components and positions

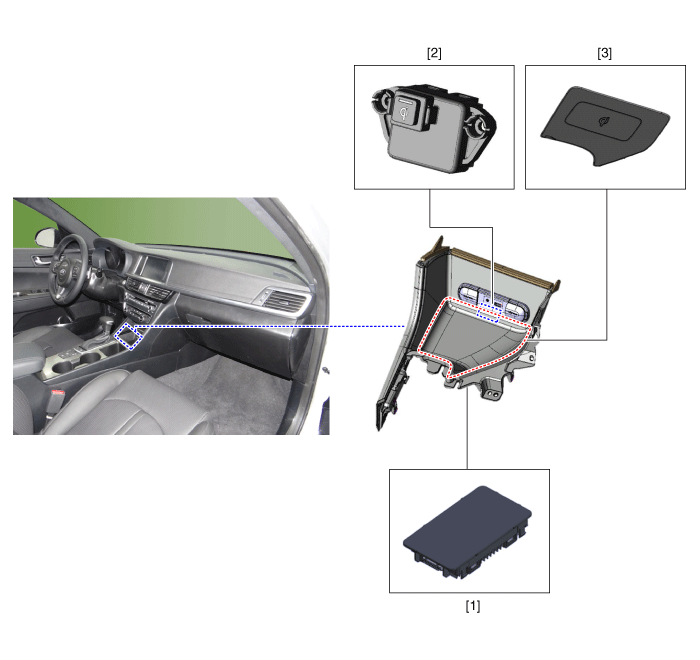

Components

1. Wireless power charging unit
2. Wireless charging lamp

3. Wireless charging pad

Specification

Specifications Item Specification Rated voltage DC 13.5 V Operating voltage DC 9.0 - 16.0 V ...

Description and operating principle

Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mob ...
