Kia Sportage: Engine Control System / Components and components location

Kia Sportage QL (2015-2024) Service Manual / Engine Control / Fuel System / Engine Control System / Components and components location

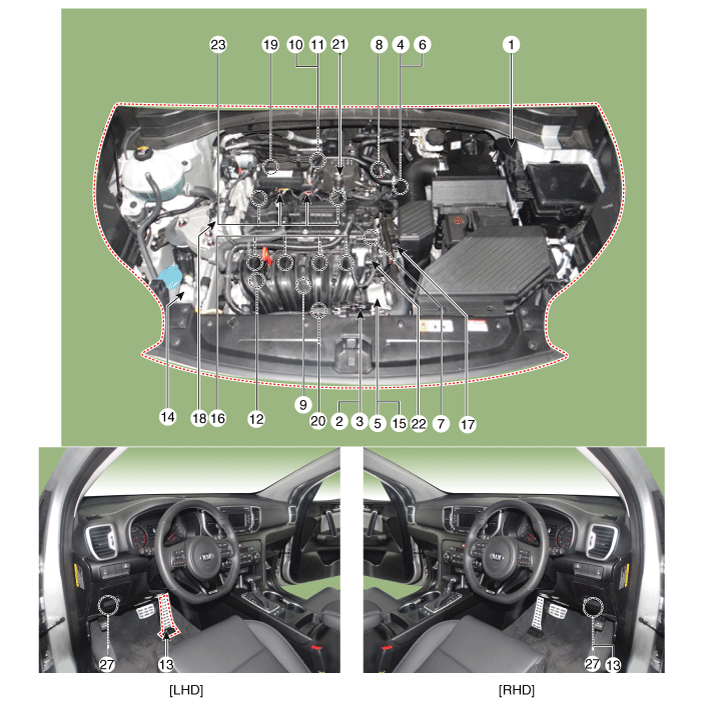

Components Location

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
12. Rail Pressure Sensor (RPS)
13. Accelerator Position Sensor (APS)
14. A/C Pressure Transducer (APT)

15. ETC Motor [integrated into ETC Module]
16. Injector
17. Purge Control Solenoid Valve (PCSV)
18. E-CVVT motor [Bank 1 / Intake]
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
20. Variable Intake Solenoid (VIS) Valve
21. Fuel Pressure Control Valve (FPCV)
22. Variable Charge Motion Actuator (VCMA)
23. Ignition Coil
24. Main Relay
25. Fuel Pump Relay
26. E-CVVT Relay
27. Data Link Connector (DLC) [16 Pin]
28. Multi-Purpose Check Connector [20 Pin]

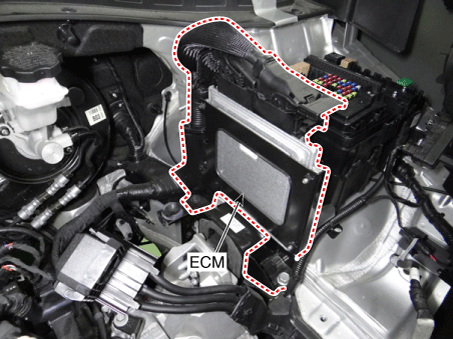

1. Engine Control Module (ECM)

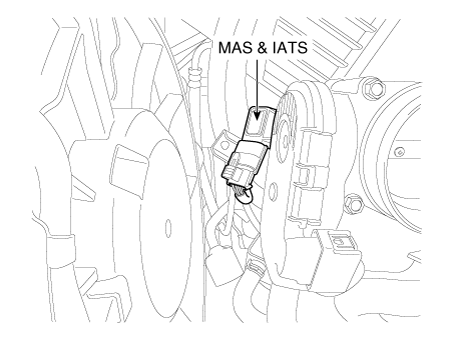

2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

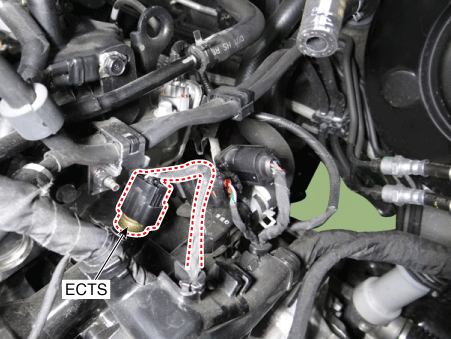

4. Engine Coolant Temperature Sensor (ECTS)

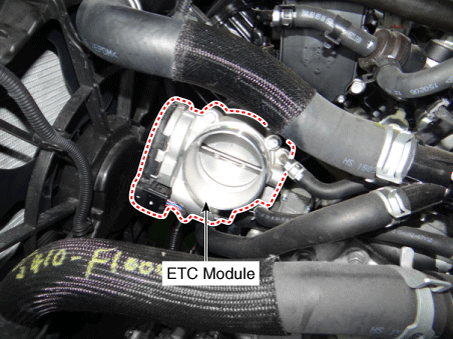

5. Throttle Position Sensor (TPS) [integrated into ETC Module]
15. ETC Motor [integrated into ETC Module]

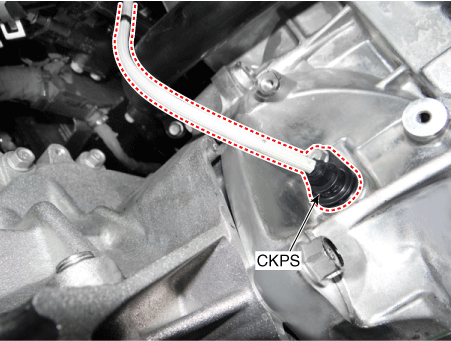

6. Crankshaft Position Sensor (CKPS)

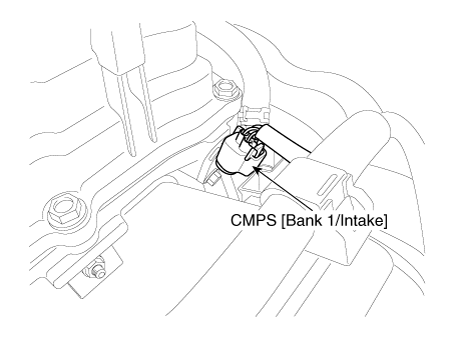

7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

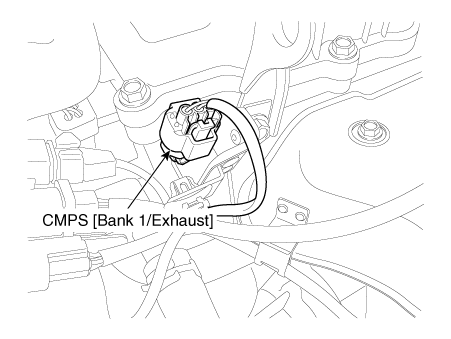

8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

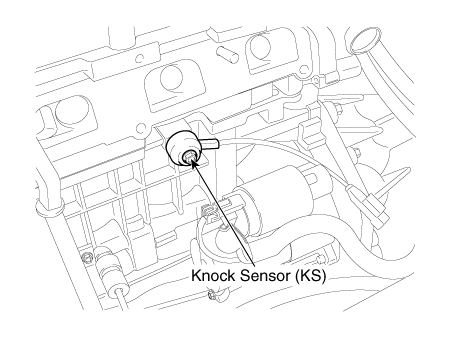

9. Knock Sensor (KS)

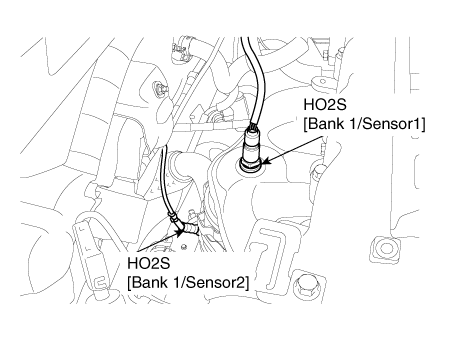

10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

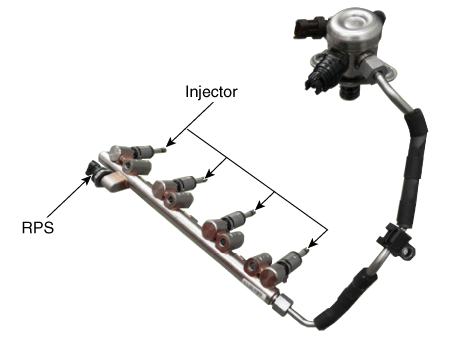

12. Rail Pressure Sensor (RPS)
16. Injector

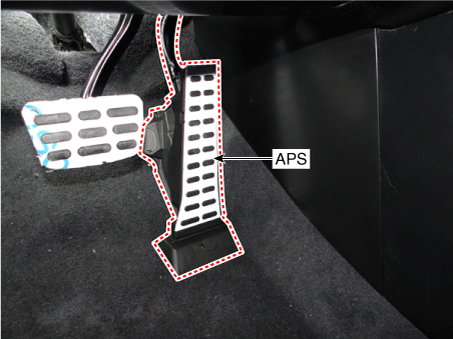

13. Accelerator Position Sensor (APS)

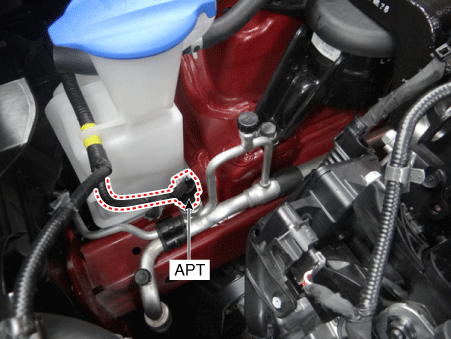

14. A/C Pressure Transducer (APT)

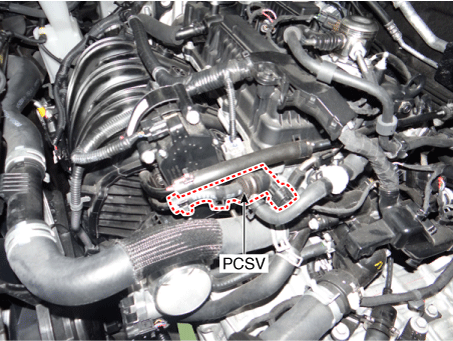

17. Purge Control Solenoid Valve (PCSV)

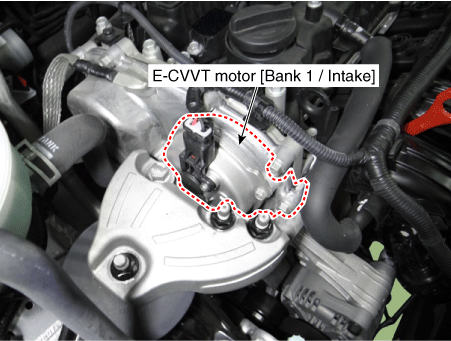

18. E-CVVT motor [Bank 1 / Intake]

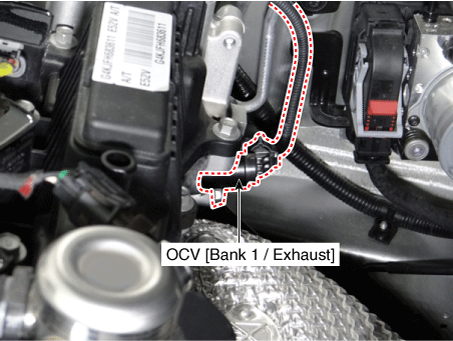

19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

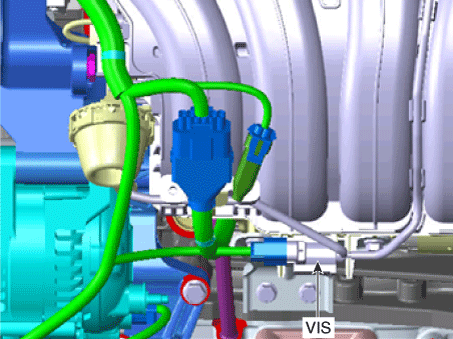

20. Variable Intake Solenoid (VIS) Valve

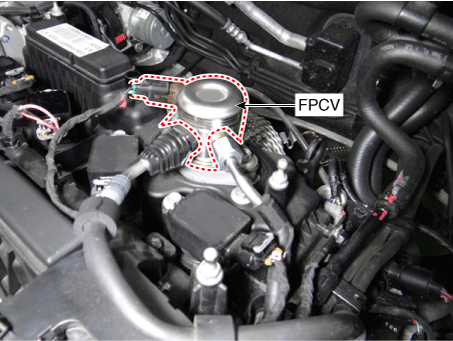

21. Fuel Pressure Control Valve (FPCV)

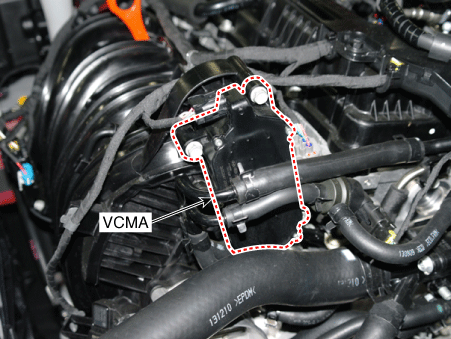

22. Variable Charge Motion Actuator (VCMA)

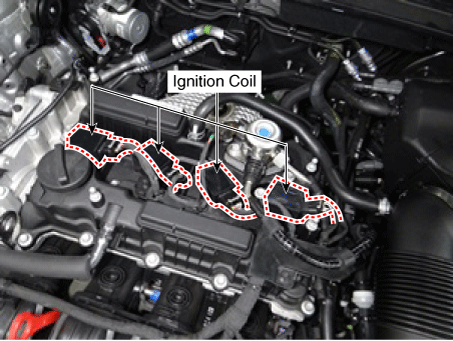

23. Ignition Coil

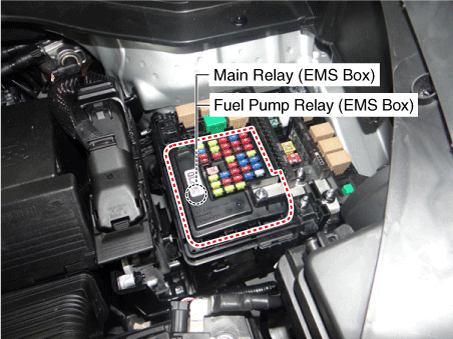

24. Main Relay (EMS Box)
25. Fuel Pump Relay (EMS Box)

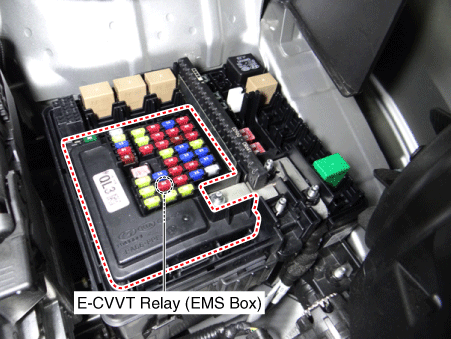

26. E-CVVT Relay (EMS Box)

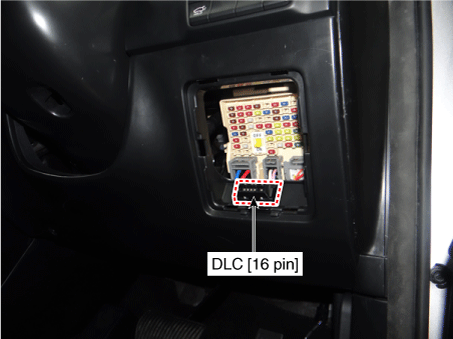

27. Data Link Connector (DLC) [16 Pin]

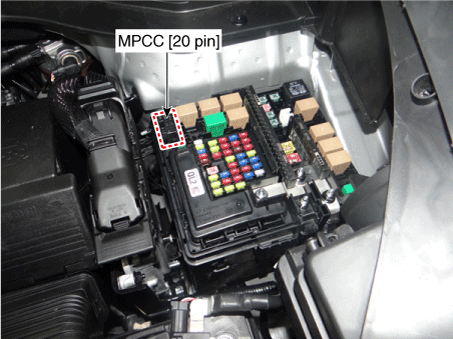

28. Multi-Purpose Check Connector [20 Pin]
