Component Location Index
Engine Room

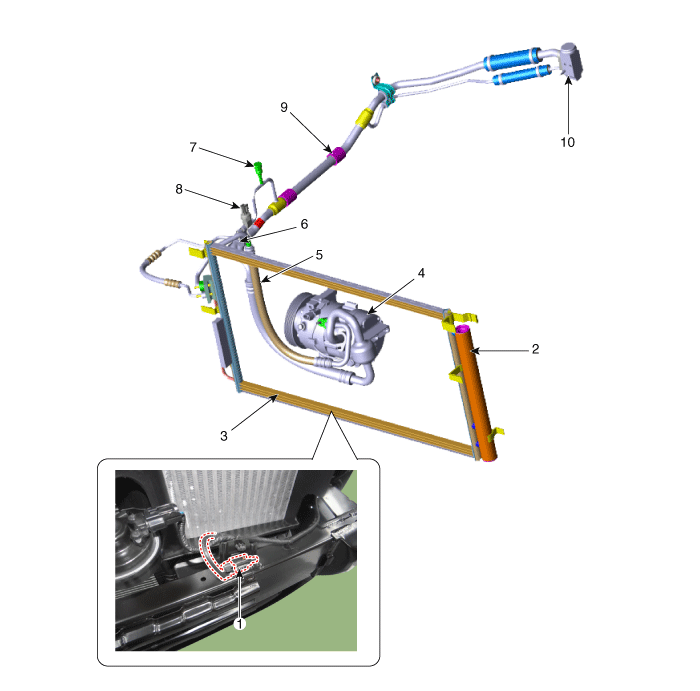

[LHD]

1. Ambient temperature Sensor
2. Receiver-drier
3. Condenser
4. Compressor
5. Discharge Hose
6. Service Port (Low Pressure)
7. Service Port (High Pressure)
8. A/C Pressure Transducer (APT)
9. Suction & Liquid Tube Assembly
10. Expansion Valve

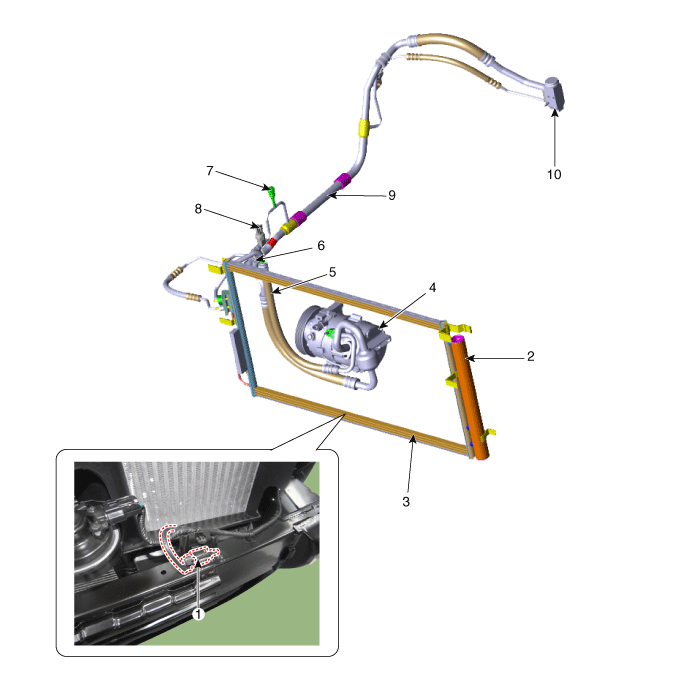

[RHD]

1. Ambient temperature Sensor
2. Receiver-drier
3. Condenser
4. Compressor
5. Discharge Hose
6. Service Port (Low Pressure)
7. Service Port (High Pressure)
8. A/C Pressure Transducer (APT)
9. Suction & Liquid Tube Assembly
10. Expansion Valve

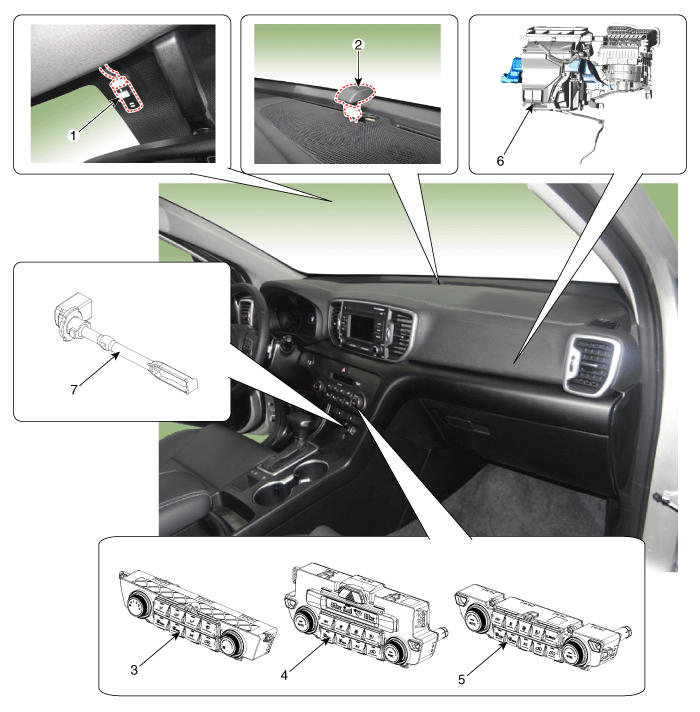

Interior

1. Auto Defogging Sensor
2. Photo Sensor
3. Heater & A/C Control Unit (Manual)
4. Heater & A/C Control Unit (DATC)[AUDIO Type]
5. Heater & A/C Control Unit (DATC)[AVN Type]
6. Heater & Blower Unit
7. Evaporator Temperature Sensor

Repair procedures
Checking Refrigerant Specifications 1. Check refrigerant specifications label inside engine room or hood. R-134a ...

Compressor oil Repair procedures
Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never ...
