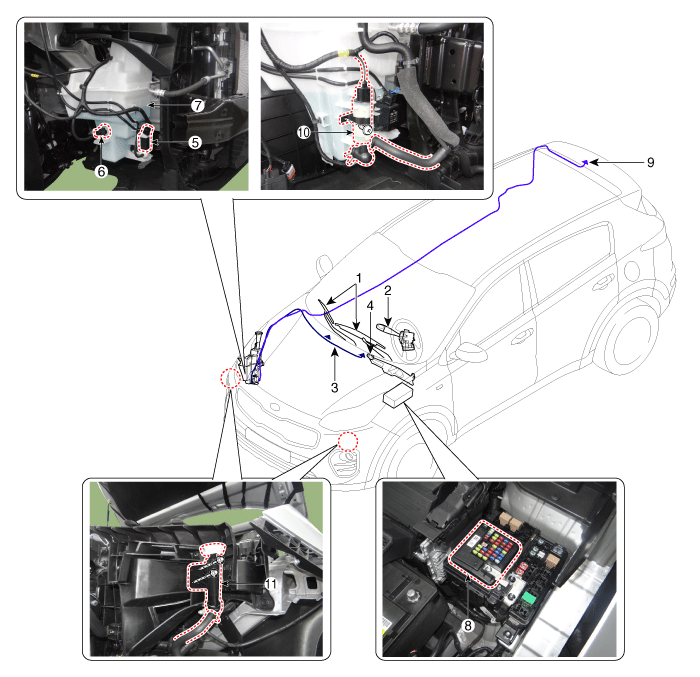

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nozzle
4. Wiper motor & linkage assembly
5. Washer motor
6. Washer fluid level sensor

7. Washer reservoir tank
8. Wiper/Washer relay (Built-in Metal core block PCB)
9. Rear washer hose & nolzzle
10. Head lamp washer motor
11. Head lamp waher actuator

Windshield Wiper/Washer

...

Windshield Wiper-Washer Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steeri ...
