Kia Sportage: Rear Wiper/Washer / Components and components location

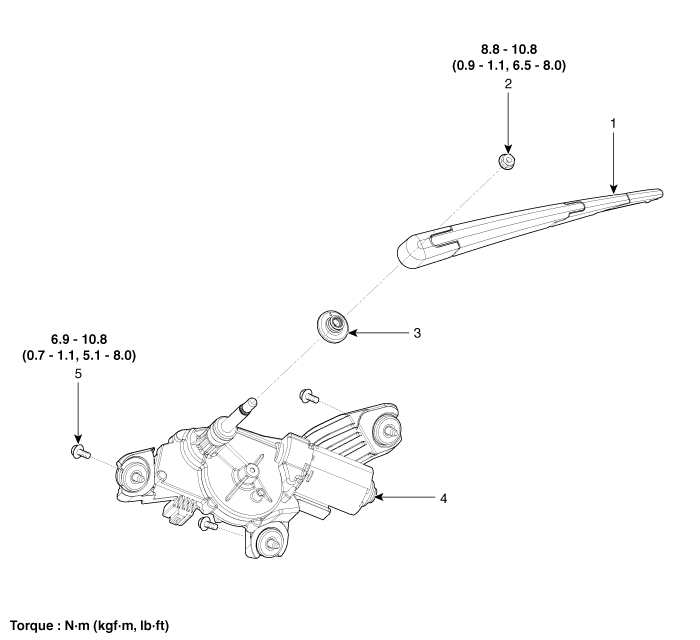

Component Location

1. Rear wiper arm & blade
2. Rear wiper arm nut
3. Rear wiper grommet

4. Rear wiper motor assembly
5. Rear wiper motor bolt

...

Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2. Connect positive (+) battery cables to terminal 2 ...

System Circuit Diagram Terminal Function Housing Pin Function Wire color Pad A GND Black B HEATER Yellow C ...

Replacement Put on gloves to protect your hands. • Use a plastic panel removal tool to remove inter ...
