Components (1)

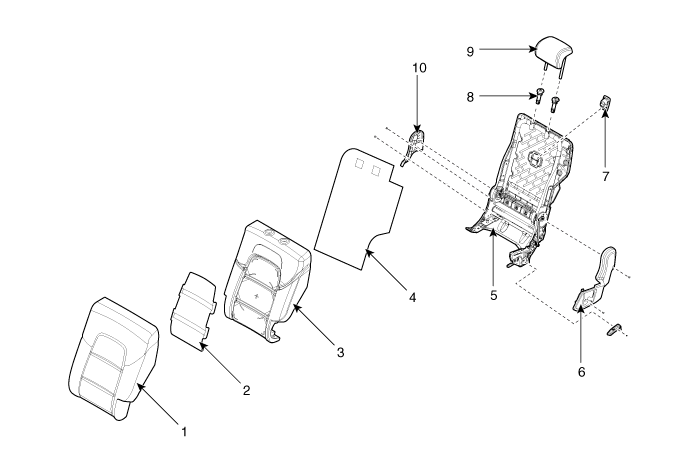

[Rear seat back assembly]
[LH]

1. Rear seat back covering
2. Rear seat back heater
3. Rear seat back pad
4. Rear seat back dust cover
5. Rear seat back frame
6. Rear seat back outer shiled cover
7. Rear seat back tether anchor cover
8. Rear seat headrest guide
9. Rear seat headrest
10. Rear seat back inner cover

Components (2)

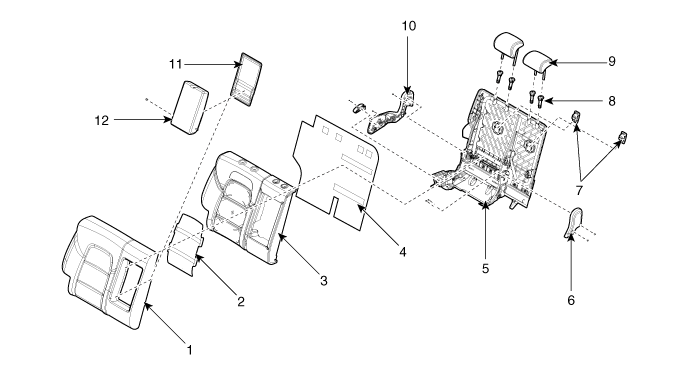

[Rear seat back assembly]
[RH]

1. Rear seat back covering
2. Rear seat back heater
3. Rear seat back pad
4. Rear seat back dust cover
5. Rear seat back frame
6. Rear seat back inner cover
7. Rear seat back tether anchor cover
8. Rear seat headrest guide
9. Rear seat headrest
10. Rear seat back outer shiled cover
11. Rear seat armrest
12. Rear seat armrest board

Components (3)

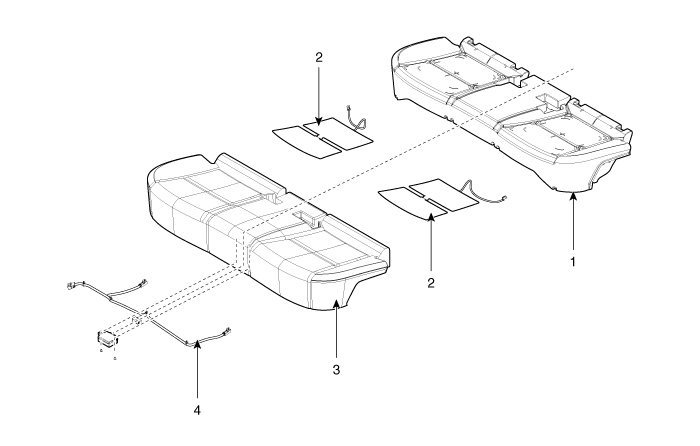

[Rear seat cushion assembly]

1. Rear seat cushion pad & frame
2. Rear seat cushion heater
3. Rear seat covering
4. Rear seat heater extension wiring

Rear Seat
...

Rear Seat Assembly Components and components location
Component Location 1. Rear seat cushion assembly 2. Rear seat back assembly ...
