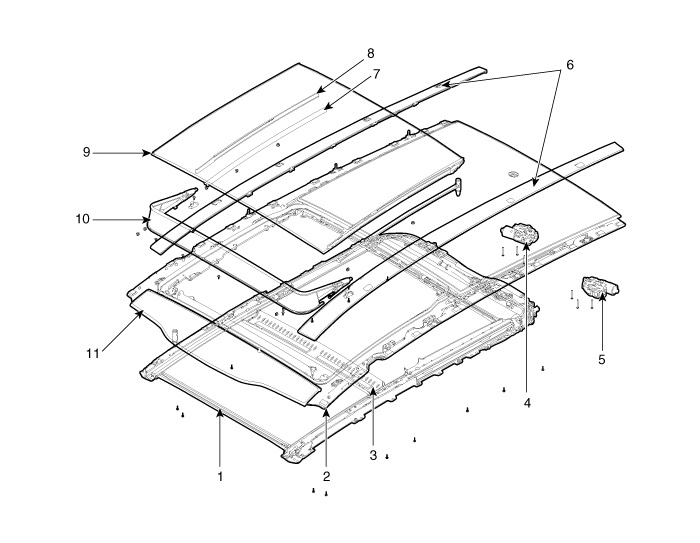

Components

1. Panorama sunroof mechanism
2. Panorama sunroof frame complete
3. Panorama sunroof center cover
4. Panorama sunroof glass motor
5. Panorama sunroof roller blind motor
6. Roof rack side molding
7. Panorama sunroof slide
8. Panorama sunroof folding cover
9. Panorama sunroof movable glass
10. Panorama sunroof wind deflector
11. Panorama sunroof front glass

Panorama sunroof
...

Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the alignment of the movable glass (C) between the front (A) and rear (B) glass and adjust it if needed. ...
