Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Crash Pad / Components and components location

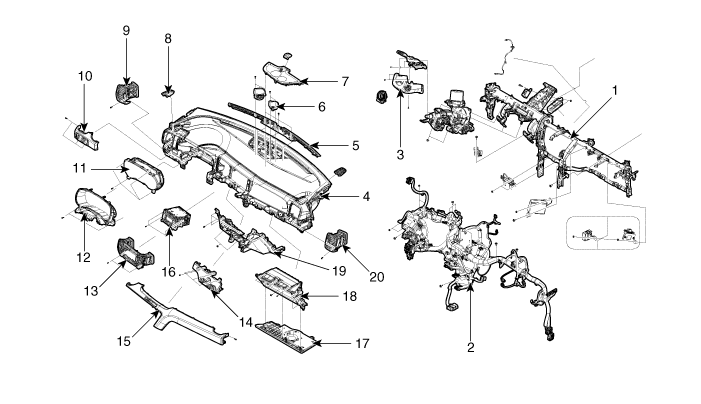

Components

1. Cowl cross bar assembly
2. Crash pad main wiring harness
3. Steering column lower shroud cover
4. Main crash pad assembly
5. Center defroster garnish assembly
6. Center speaker
7. Center speaker grill assembly
8. Defroster nozzle cover [LH]
9. Side air vent duct [LH]
10. Crash pad garnish [LH]
11. Cluster assembly
12. Cluster fascia upper panel
13. Center facia upper panel assembly
14. Center facia lower panel assembly
15. Crash pad garnish [RH]
16. AVN & audio unit assembly
17. Crash pad under cover assembly [RH]
18. Glove box complete
19. Crash pad center lower panel assembly
20. Side air vent duct [RH]

Crash Pad
...

Cluster Fascia Panel Components and components location
Component Location 1. Cluster fascia panel ...
