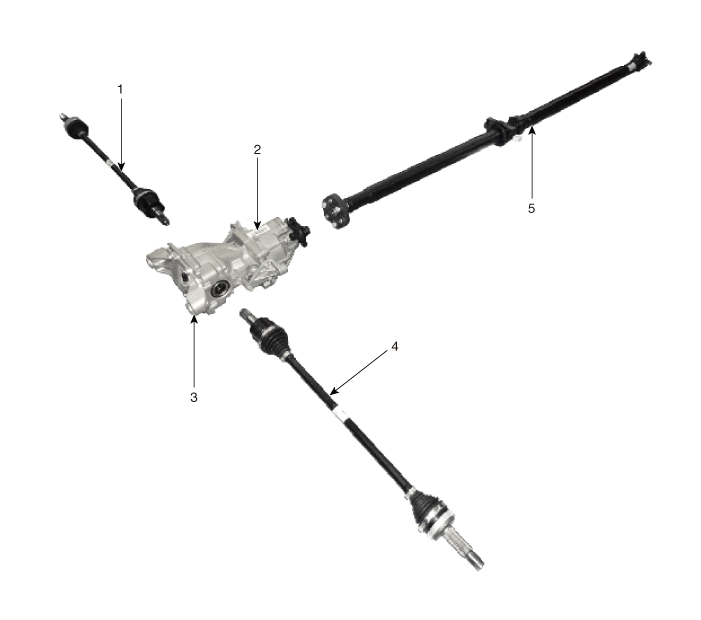

Components Location

1. Rear driveshaft LH
2. Coupling assembly
3. Rear differential carrier assembly
4. Rear driveshaft RH
5. Propeller shaft

Differential Carrier Assembly / Rear Differential Carrier
...

Repair procedures
Removal 1. Remove wheel nuts, wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 9 ...
