Removal
1.
Remove the fuel tank.
(Refter to Engine Control / Fuel System - "Fuel Tank")
2.

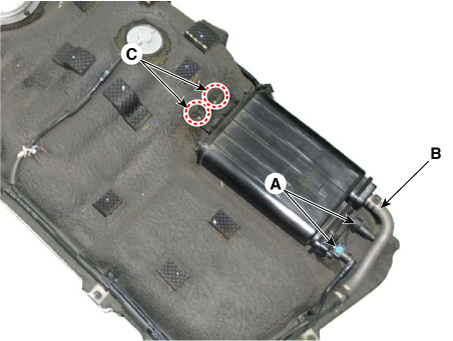

Disconnect the vapor hose quick-connector (A) and ventilation hose (B).
3.
Remove the protector installation bolts (C) and nut (D), and then remove the canister assembly.

Inspection
1.
Check for the following items visually.
Cracks or leakage of the canister
Loose connection, distortion, or damage of the vapor hose/tube

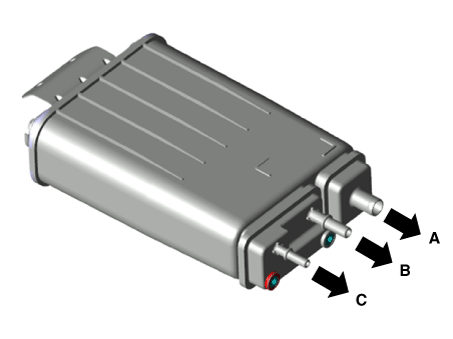

A: Canister ↔ Atmosphere
B: Canister ↔ Intake Manifold
C: Canister ↔ Fuel Tank
Installation
1.
Install in the reverse order of removal.
Schematic diagrams
Schematic Diagram 1. Air cleaner 2. Delivery pipe & injector 3. Engine 4. Purge control solenoid valve (PCSV) 5. Fuel tank air filter 6. High p ...

Purge Control Solenoid Valve (PCSV) Specifications
Specification Item Specification Coil Resistance (Ω) 22.0 - 26.0 [20°C(68°F)] ...
