Kia Sportage: Blind Spot Detection system / Blind Spot Detection Unit Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Unit Schematic diagrams

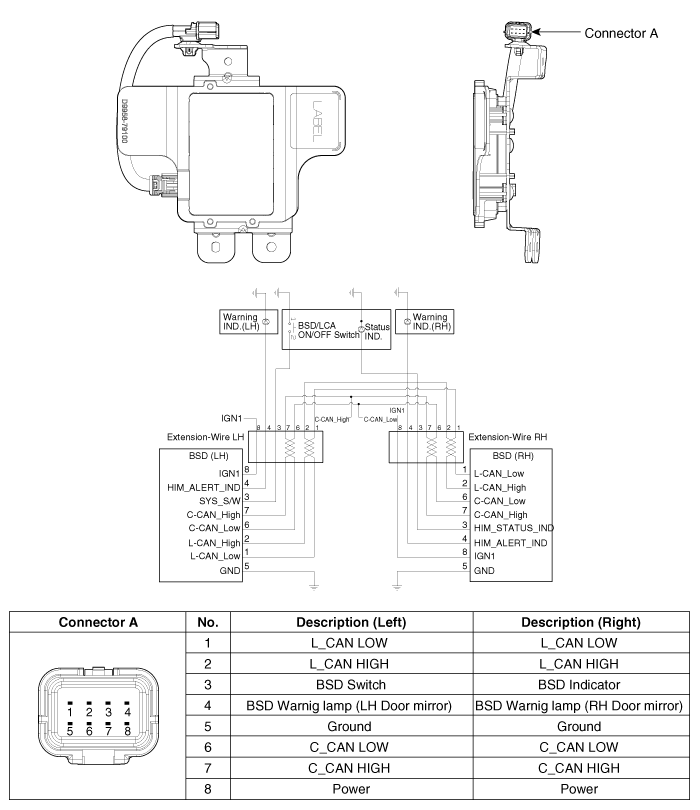

Circuit Diagram

Repair procedures
Diagnosis With KDS/GDS 1. BSD system defects can be quickly diagnosed with the KDS/GDS. GDS operates actuator quickly to monitor, input/output value and self diag ...

Blind Spot Detection Unit Repair procedures
Removal    lf replacement of the bracket or extension wire of BSD unit is required, it is recommended to surel ...
