Removal
Blind Spot Detection Warning Indicator
1.
Disconnect the negative (-) battery terminal.
2.

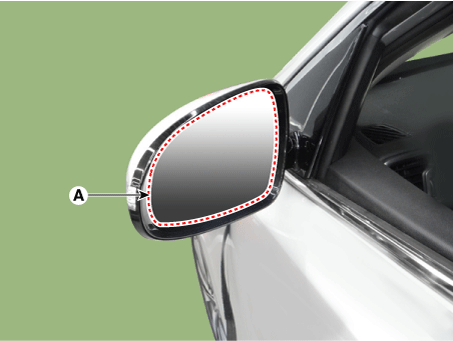

Remove the mirror (A) from the mirror holder.

3.

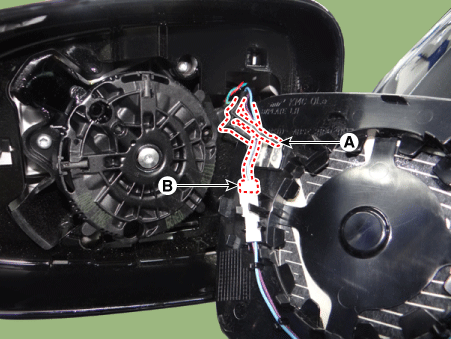

Disconnect the mirror heated connector (A) and BSD indicator connector (B).

Installation
Blind Spot Detection Warning Indicator
1.
Connect the mirror heated connector and BSD indicator connector.
2.
Install the outside mirror.
3.
Connect the negative (-) battery terminal.
Inspection
1.

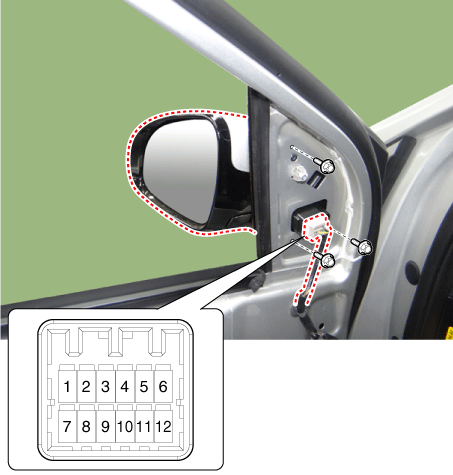

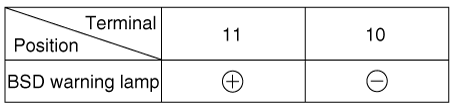

Verify that the mirror operates properly as shown in the below table.
