Kia Sportage: Cooling System / Water pump Components and components location

Kia Sportage QL (2015-2024) Service Manual / Engine Mechanical System / Cooling System / Water pump Components and components location

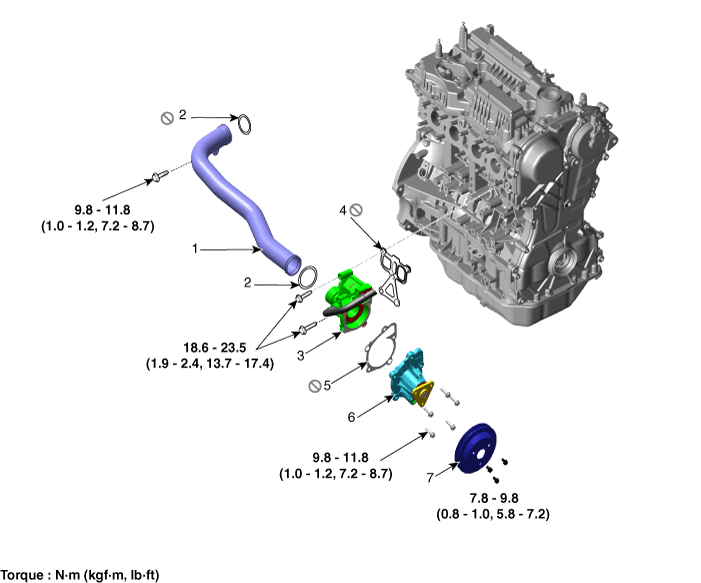

Components

1. Water inlet pipe
2. Water inlet pipe O-ring
3. Water pump housing
4. Water pump housing gasket

5. Water pump gasket
6. Water pump
7. Water pump pulley

Thermostat Troubleshooting

Troubleshooting Symptoms Possible Causes Remedy Coolant leakage • From the thermostat ...

Water pump Repair procedures

Removal and Installation 1. Drain the coolant. (Refer to Cooling System - "Coolant") 2. Remove the drive belt after t ...
