Components

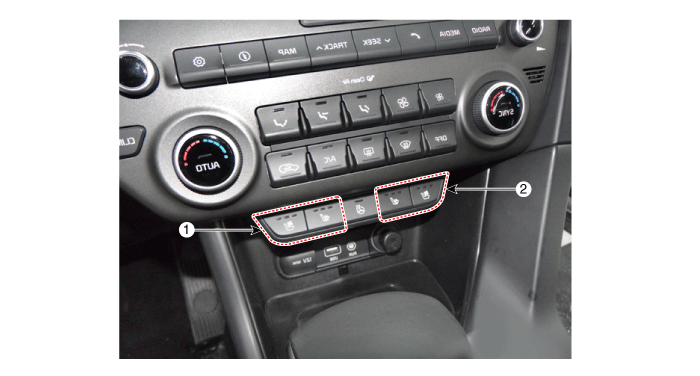

Front Seat Switch

1. Driver side seat heater switch

2. Passenger side seat heater switch

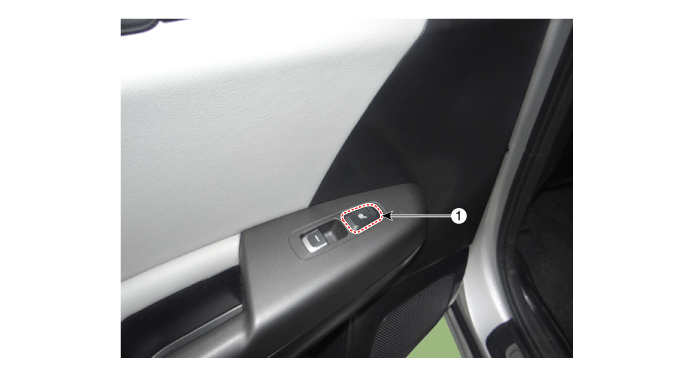

Rear Seat Switch

1. Rear seat heater switch (LH/RH)

Seat Heater Repair procedures

Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals No 4 and No 6. Standard ...

Seat Heater Switch Schematic diagrams

Circuit Diagram Front Seat Heater Switch Rear Seat Heater Switch ...
