Kia Sportage: Seat Electrical / Seat Heater Schematic diagrams

Kia Sportage QL (2015-2019) Service Manual / Body Electrical System / Seat Electrical / Seat Heater Schematic diagrams

Circuit Diagram

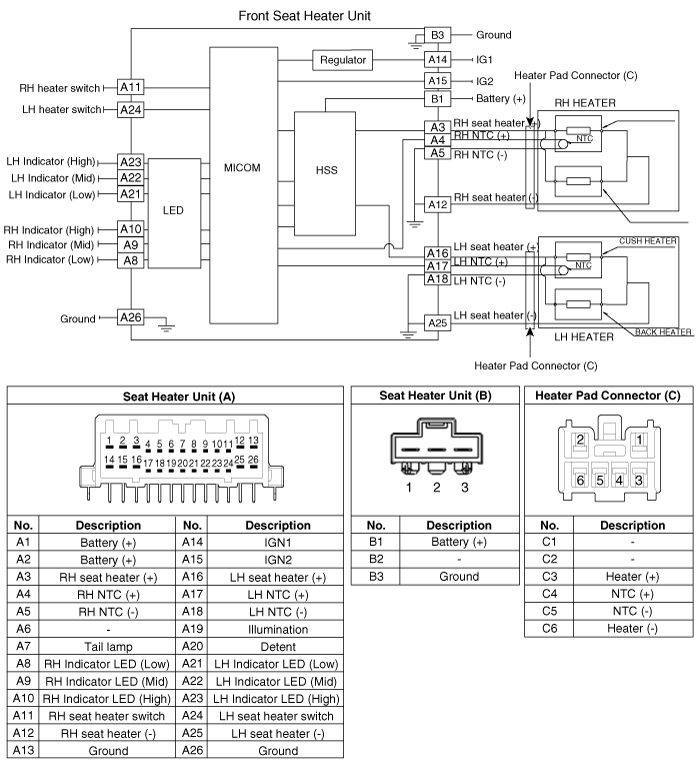

Front Seat Heater

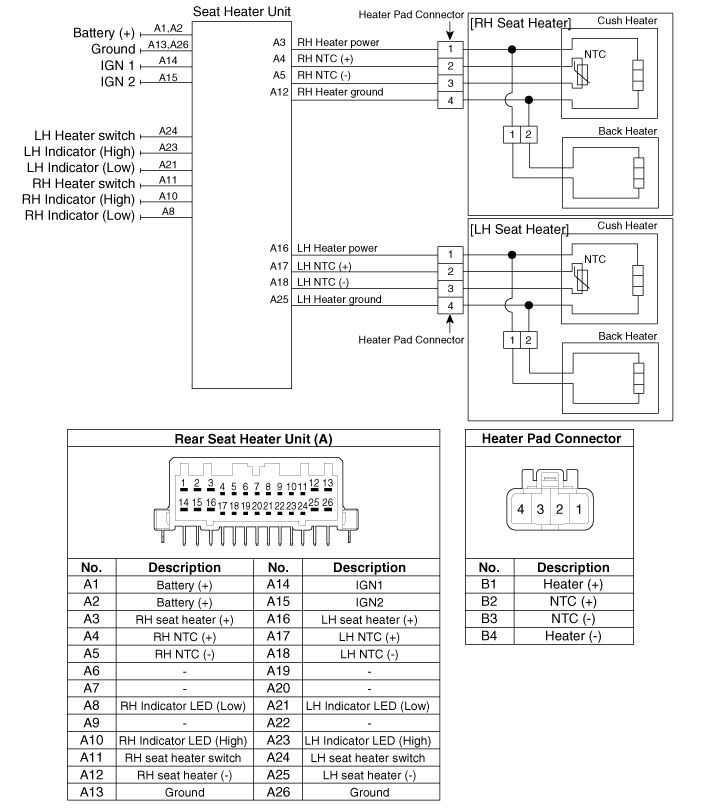

Rear Seat Heater

Seat Heater Components and components location
Component Location Front Seat Heater 1. Seat heater unit (Assist seat only) 2. Front seat back heater 3. Front seat cushion heater ...

Seat Heater Repair procedures
Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals No 4 and No 6. Standard ...
