Kia Sportage: BCM (Body Control Module) / Schematic diagrams

Kia Sportage QL (2015-2023) Service Manual / Body Electrical System / BCM (Body Control Module) / Schematic diagrams

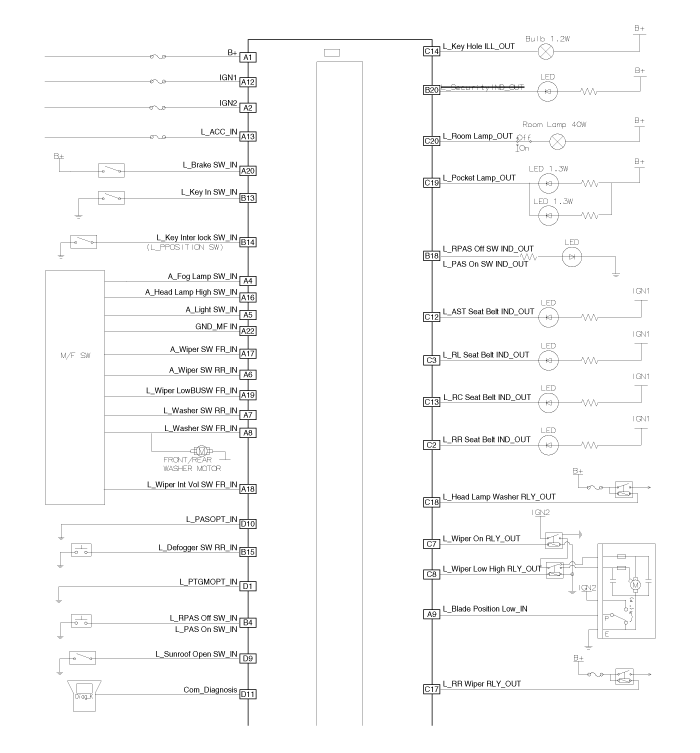

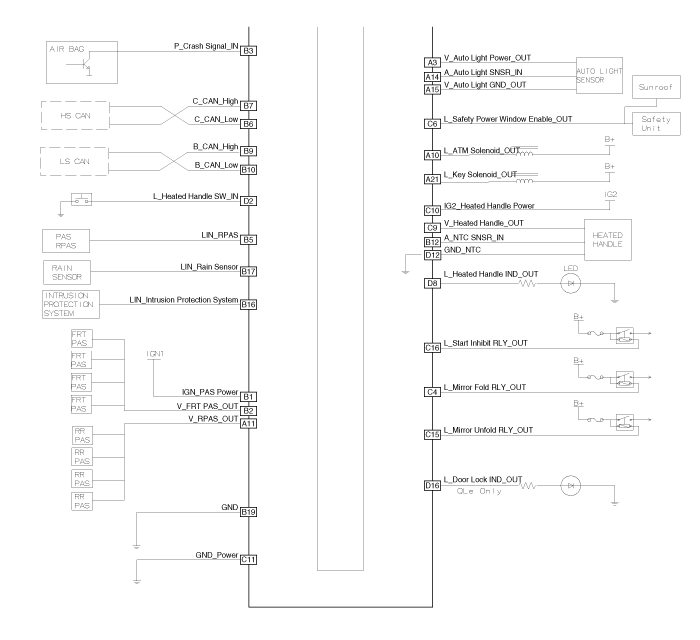

Circuit Diagram

Components and components location
Components Connector Pin Information No. Connector A Connector  B Connector  C Connector  D ...

Description and operation
Description Body Control Module (BCM) function No. Item Description 1 Washer Linked Wiper ...
