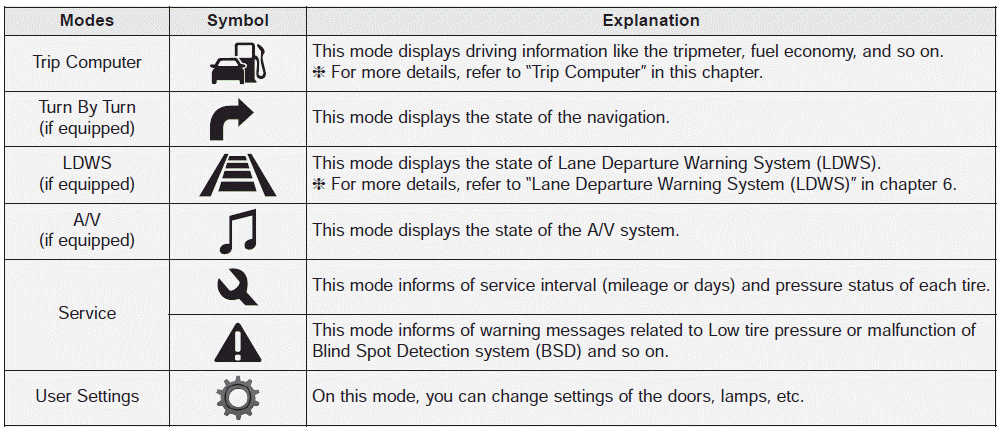

Kia Sportage: LCD Display / LCD Modes

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / LCD Display / LCD Modes

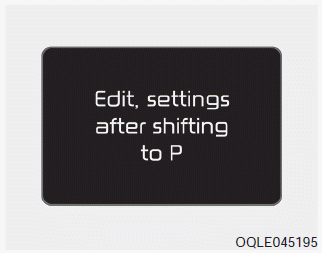

Edit settings after engaging parking brake/Edit settings after shifting to P

This warning message illuminates if you try to select an item from the User Settings mode while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).
