Removal
1.
Open the fuel filler door.
2.
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
3.

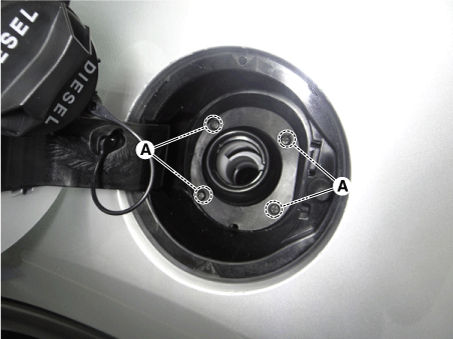

Remove the filler-neck mounting bolt (A).
Filler-Neck Assembly mounting bolt :
7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4.
Lift the vehicle.
5.

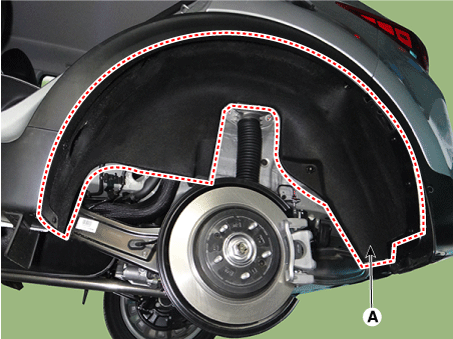

Remove the rear-LH wheel, tire, and the inner wheel house (A).

6.

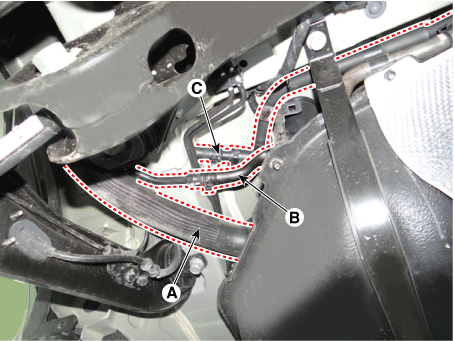

Disconnect the fuel filler hose (A), the leveling tube quick-connector (B) and the ventilation hose (C)

7.

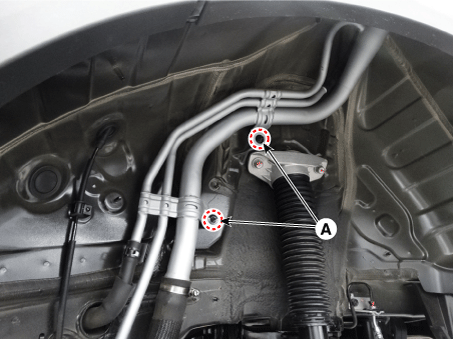

Remove the filler-neck assembly after loosening the mounting bolts (A).

Installation
1.
Install in the reverse order of removal.
