Kia Sportage: Your vehicle at a glance / Exterior overview

Kia Sportage QL (2015-2026) Owners Manual / Your vehicle at a glance / Exterior overview

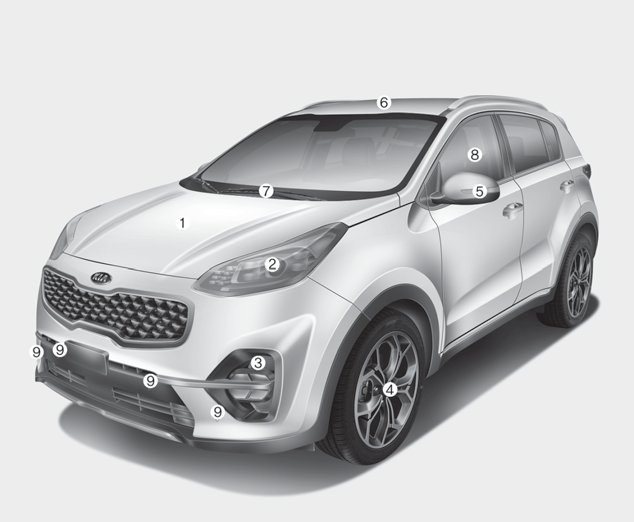

■ Front view

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance).
3. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)
4. Wheel and tire
5. Outside rearview mirror
6. anorama sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
8. Windows
9. arking distance warning-forward

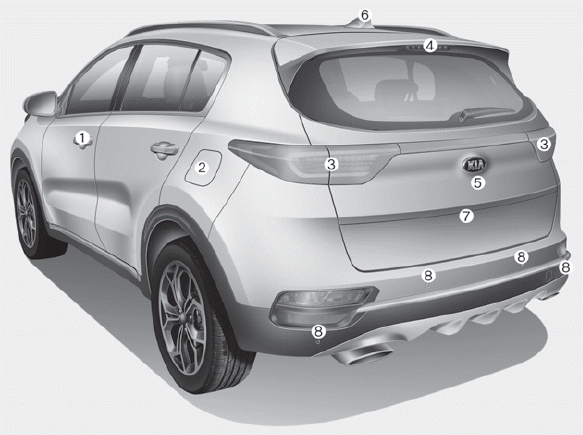

■ Rear view

1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Tailgate
6. Antenna
7. Rearview monitor
8. Parking distance warning-reverse
