Kia Sportage: Maintenance / Engine oil

Kia Sportage QL (2015-2020) Owners Manual / Maintenance / Engine oil

Checking the engine oil level

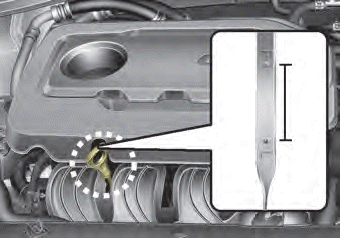

■ THETA 2.4L - GDI

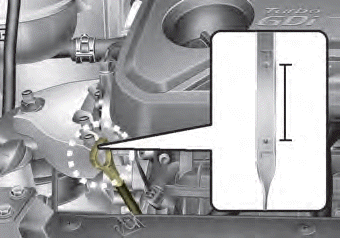

■ THETA 2.0L T-GDI

1. Be sure the vehicle is on level ground.

2. Start the engine and allow it to reach normal operating temperature.

3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

4. Pull the dipstick out, wipe it clean, and reinsert it fully.

WARNING - Radiator hose

Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.

5. Pull the dipstick out again and check the level. The level should be between F and L.

CAUTION - Replacing engine oil

Do not overfill the engine oil. It may damage the engine.

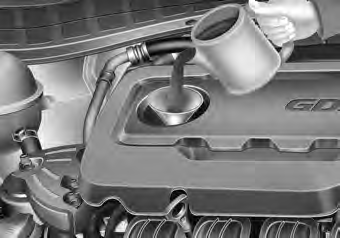

■ THETA 2.4L - GDI

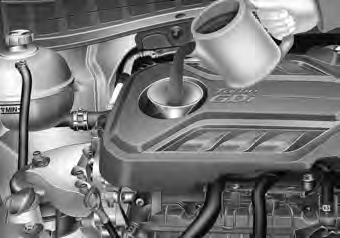

■ THETA 2.0L T-GDI

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

Use a funnel to help prevent oil from being spilled on engine components.

Use only the specified engine oil. (Refer to “Recommended lubricants and capacities” in chapter 9.)
