Kia Sportage: Cruise Control System / Cruise Control Switch Schematic diagrams

Kia Sportage QL (2015-2020) Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic diagrams

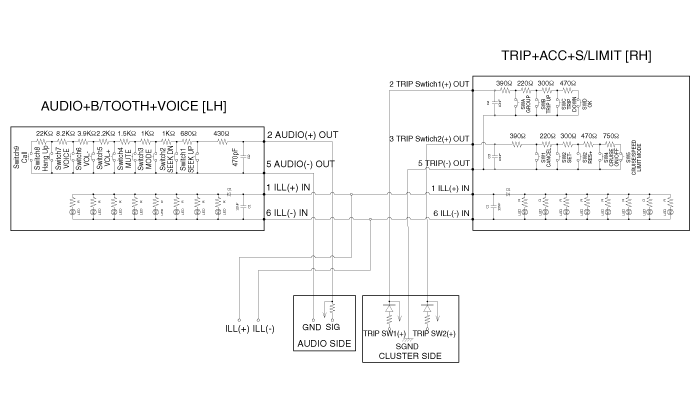

Circuit Diagram

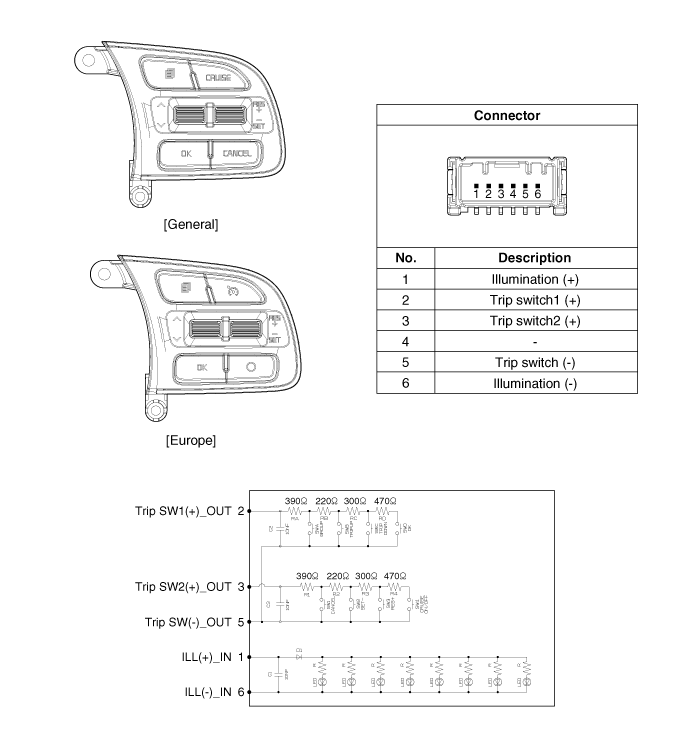

[Trip + ACC]

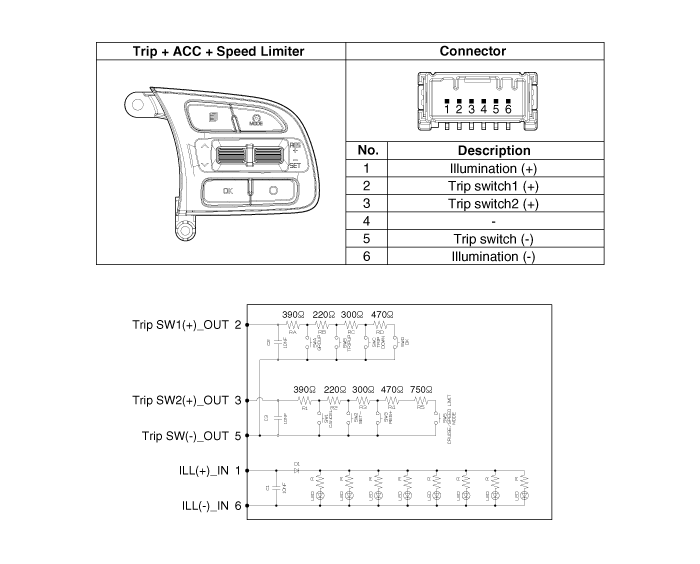

[Trip + ACC + Speed Limiter]

Cruise Control Switch Components and components location
Components 1. Left Remote Control Switch (Audio + Hands free) 2. Right Remote Control Switch (Cruise+Trip Computer) ...

Cruise Control Switch Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (RH). [RH : Trip + Cruise] Switch ...
