Components Location

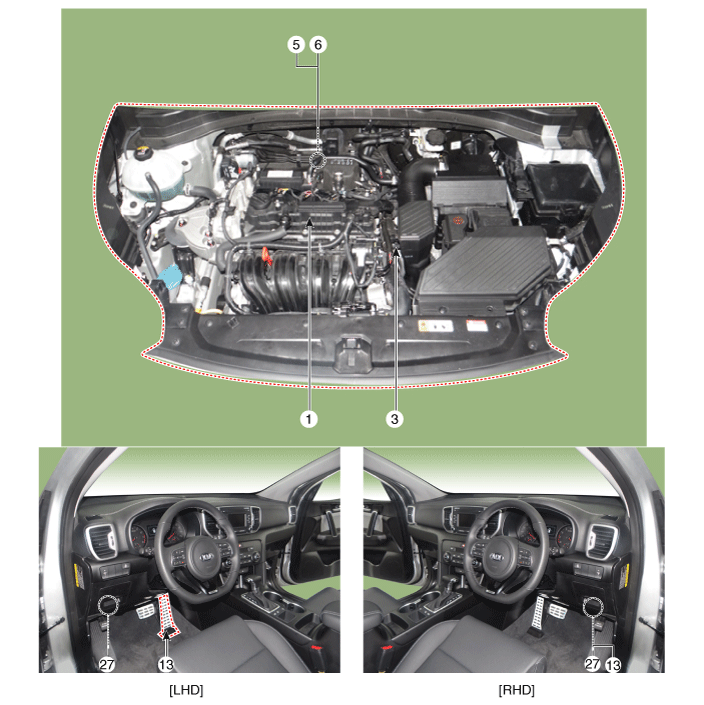

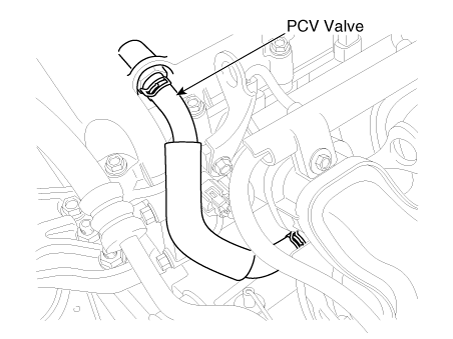

1. PCV Valve

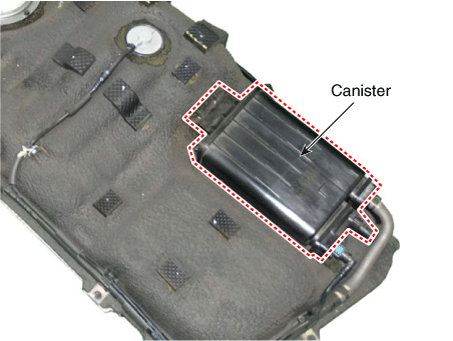

2. Canister

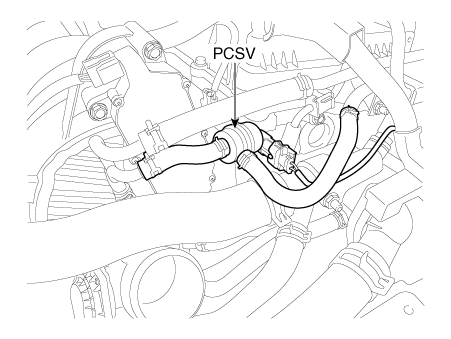

3. Purge control solenoid valve (PCSV)

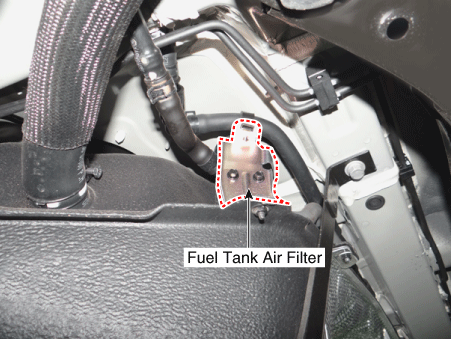

4. Fuel tank air filter

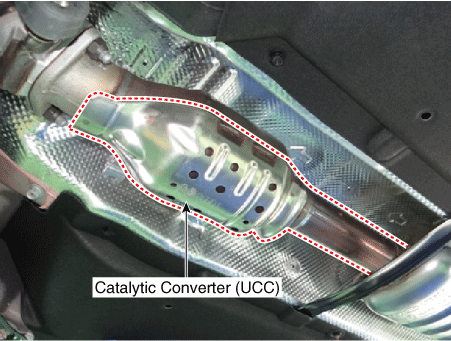

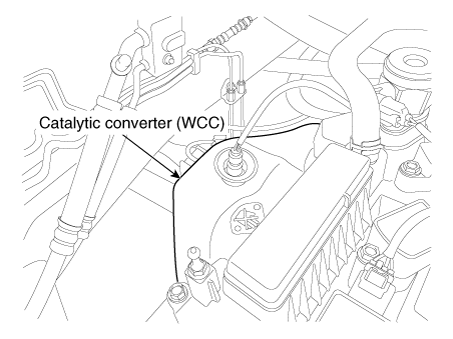

5. Catalytic converter (WCC)
6. Catalytic converter (UCC)

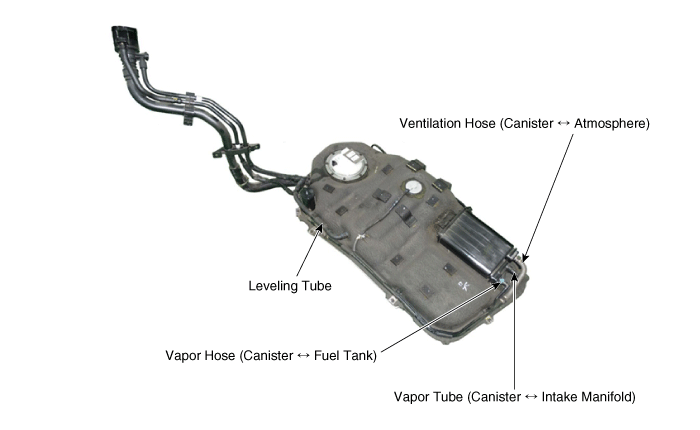

7. Leveling Tube
8. Vapor Tube (Canister ↔ Intake Manifold)
9. Vapor Hose (Canister ↔ Fuel Tank)
10. Ventilation Hose (Canister ↔ Atmosphere)

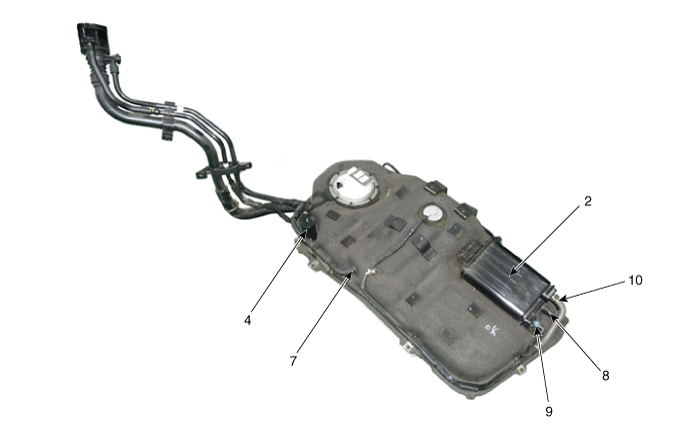

1. PCV valve
2. Canister

3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Air Filter

5. Catalytic Converter (WCC)
6. Catalytic Converter (UCC)

7. Leveling Hose
8. Vapor Hose ( Canister ↔ Intake Manifold)
9. Vapor Hose (Canister ↔ Fuel Tank)
10. Ventilation Hose (Canister ↔ Atmosphere)


Specifications
Specifications Purge Control Solenoid Valve (PCSV) ▷ Specification Item Specification Coil Resistance (Ω) 22.0 - 26 ...

Description and operation
Description Emissions Control System consists of three major systems. • The Crankcase Emission Control System prevents blow-by gas from releasing into the ...
