Kia Sportage: Multifunction Switch / Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Multifunction Switch / Components and components location

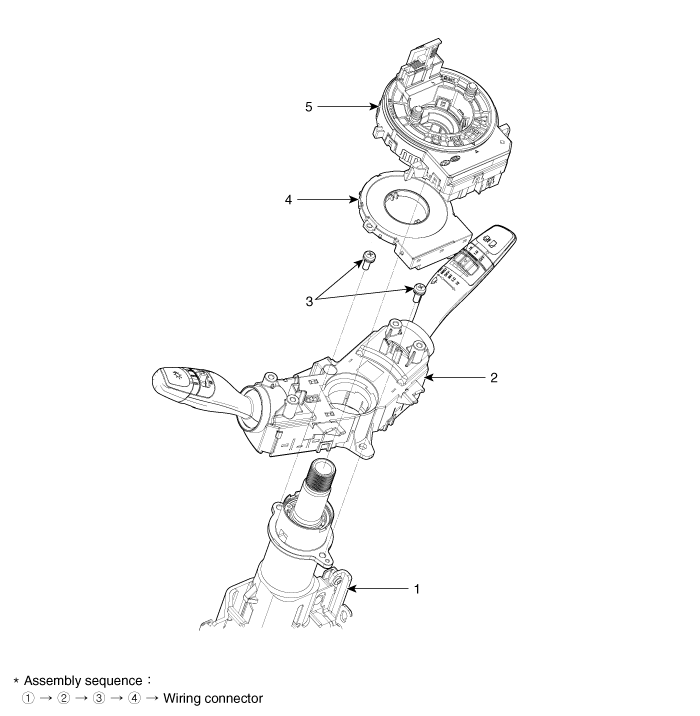

Component

1. Steering column
2. Multifunction switch
3. Screw

4. Steering angle sensor
5. Clock spring

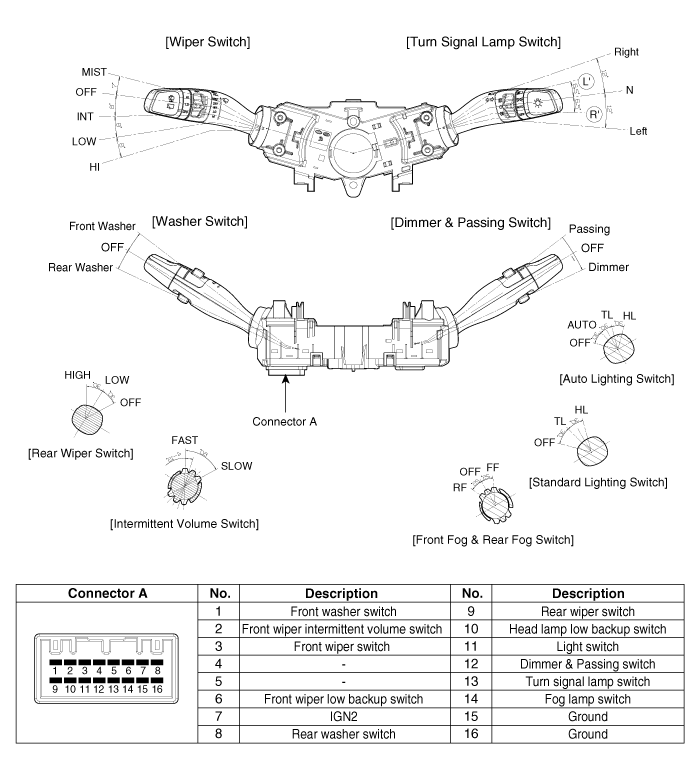

[LHD]

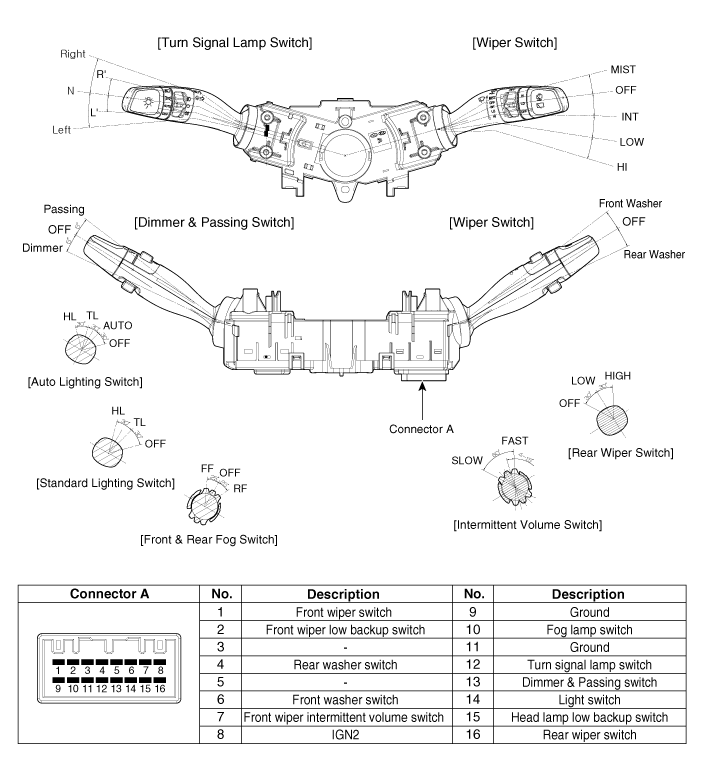

[RHD]

Specifications

Specifications Items Specifications Rated voltage DC 12 V Operating temperature range -22 - 176°F ...

Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steeri ...
