Kia Sportage: Folding key / Battery replacement

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Folding key / Battery replacement

The transmitter uses a 3 volt lithium battery which will normally last for several years. When replacement is necessary, use the following procedure.

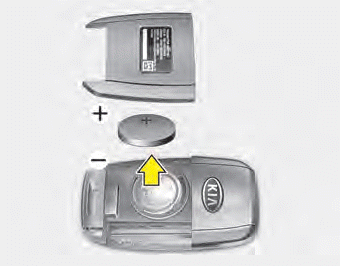

1. Insert a slim tool into the slot and gently pry open the transmitter center cover.

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery is positioned correctly.

3. Install the battery in the reverse order of removal.

For replacement transmitters, see an authorized Kia dealer for transmitter reprogramming.

CAUTION - Transmitter damage

Do not drop, wet or expose the keyless entry system transmitter to heat or sunlight.

Transmitter precautions
The transmitter will not work if any of following occur: - The ignition key is in the ignition switch. - You exceed the operating distance limit (about 30 feet [10 m]). - The battery in the t ...

Immobilizer system
Your vehicle is equipped with an electronic engine immobilizer system to reduce the risk of unauthorized vehicle use. Your immobilizer system is comprised of a small transponder in the ignition key ...
