Kia Sportage: Audio / Audio Remote Control Schematic diagrams
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6012l.gif)

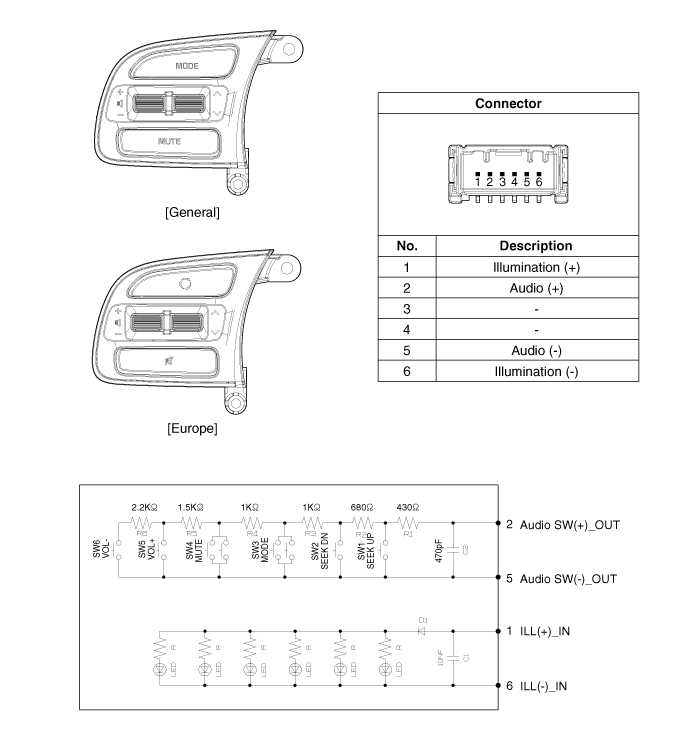

[Audio]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6013l.gif)

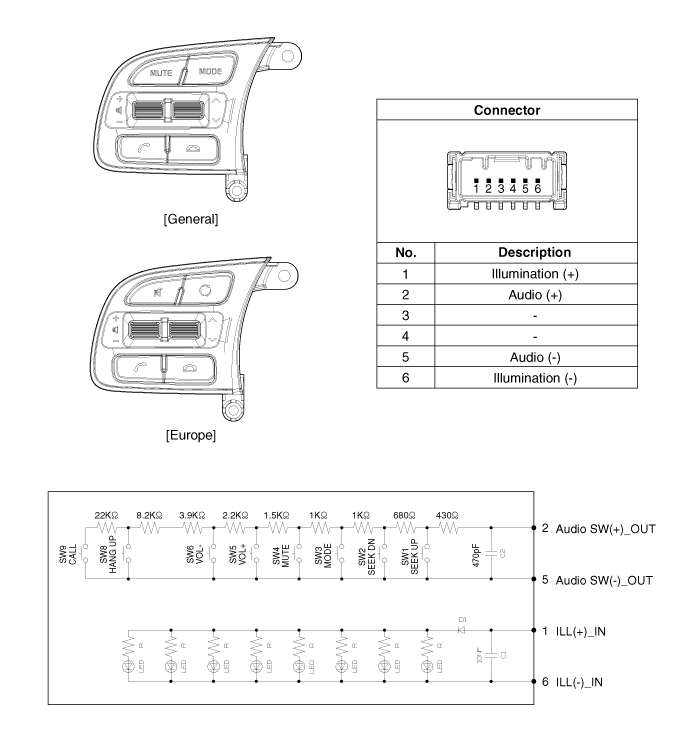

[Audio + Bluetooth]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6014l.gif)

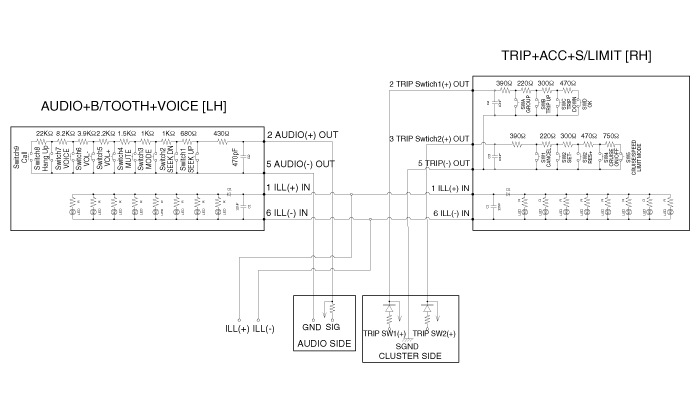

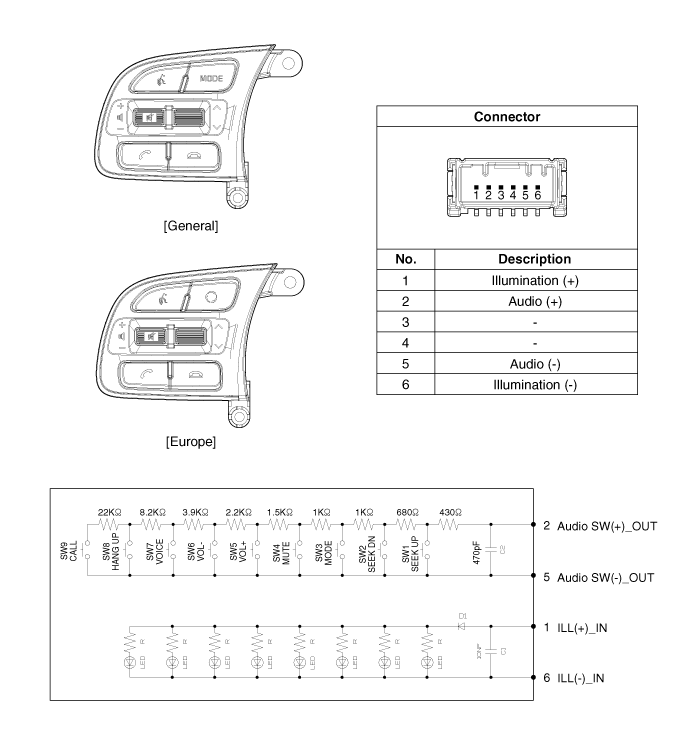

[Audio + Bluetooth + Voice]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6015l.gif)

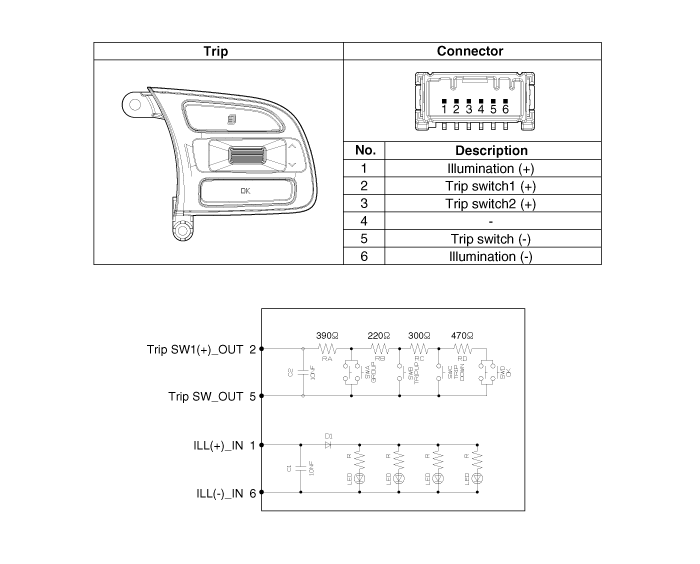

[Trip]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6016l.gif)

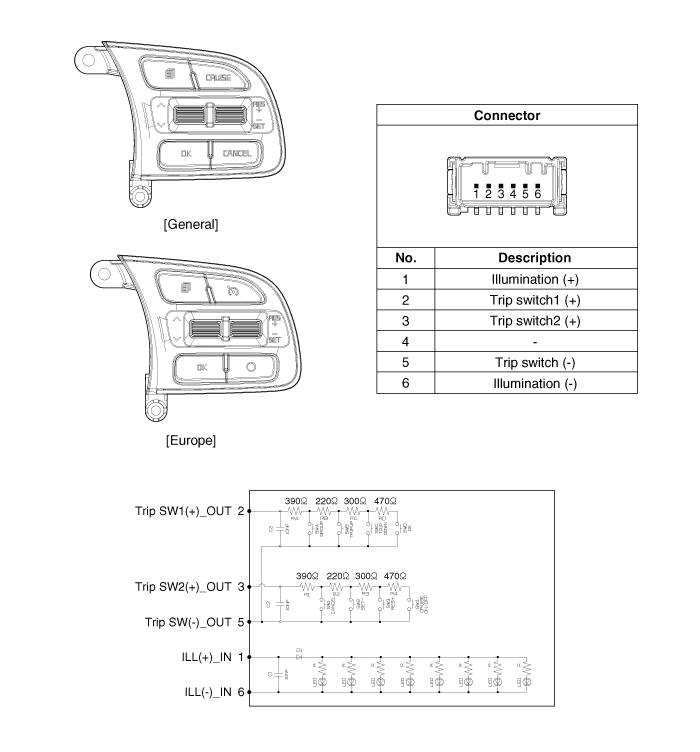

[Trip + ACC]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6017l.gif)

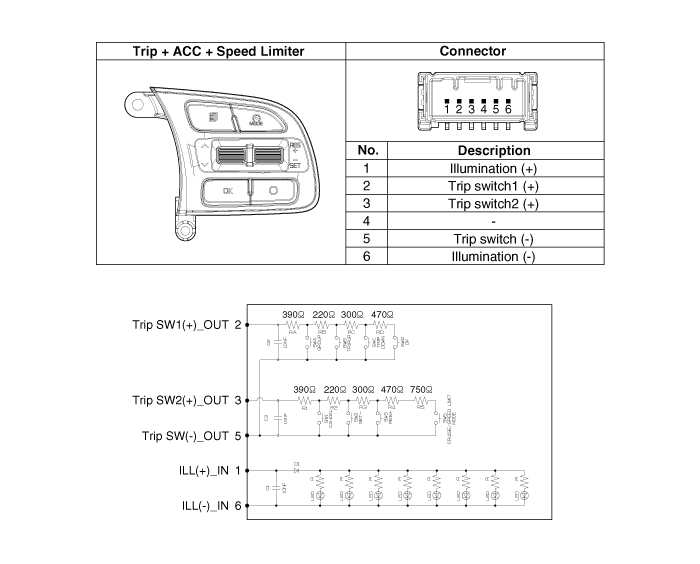

[Trip + ACC + Speed Limiter]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6018l.gif)

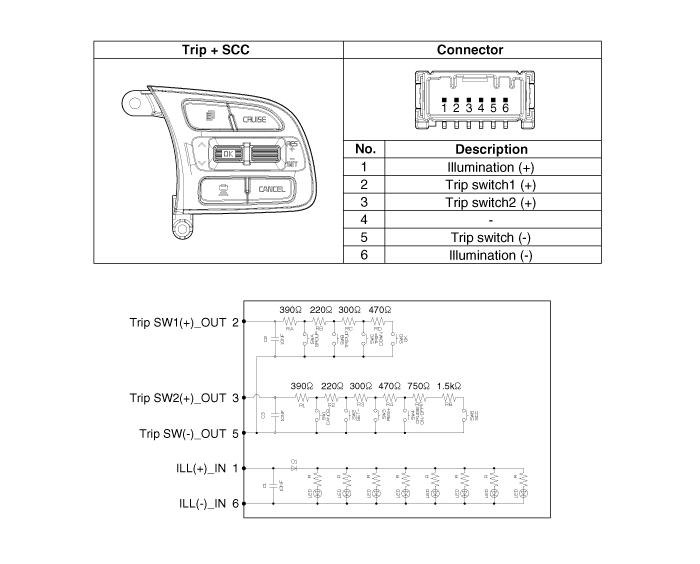

[Trip + SCC]
![](images/audio_remote_control_schematic_diagrams-1421/601/sqlbe6019l.gif)
Components
1. Left Remote Control Switch
(Audio + Hands free)
2. Right Remote Control Switch
(Cruise+Trip Computer)
...
Inspection
1.
Check for resistance between terminals in each switch position (LH).
[LH : Audio + Hands free]
Switch
...
